Road Marking Paint Machine - -

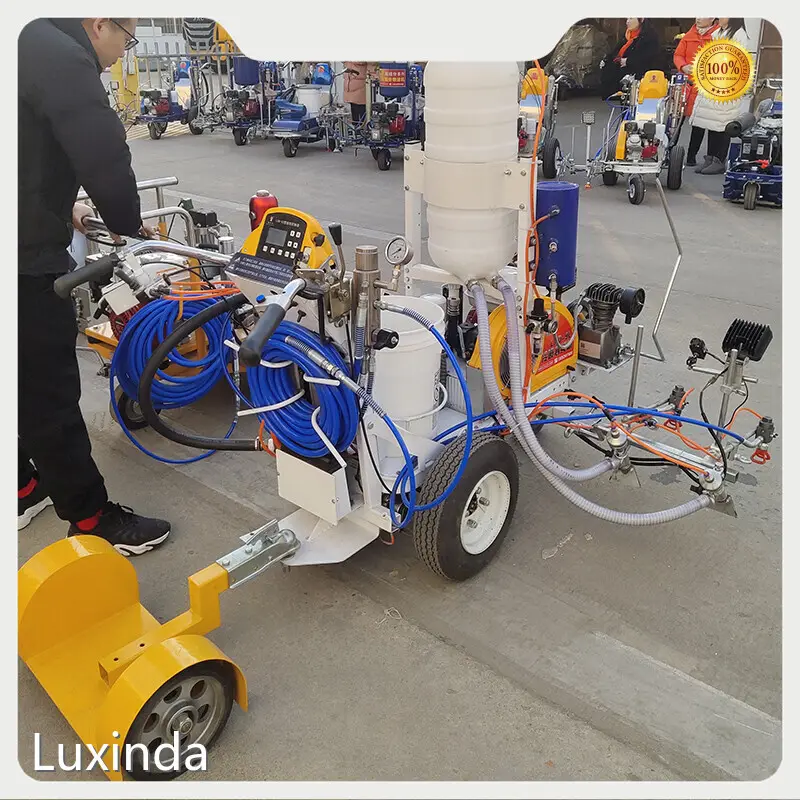

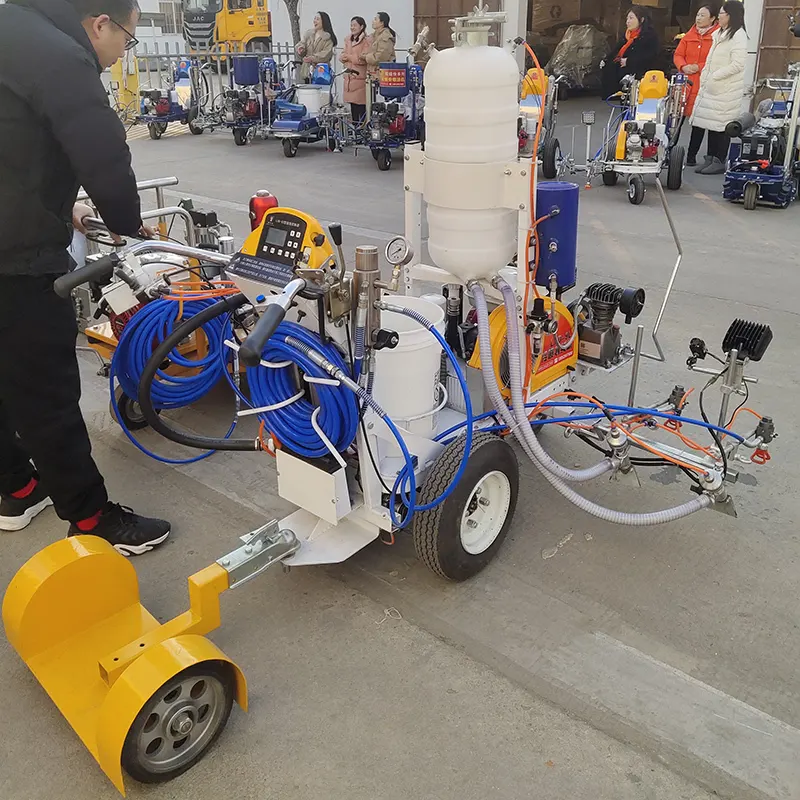

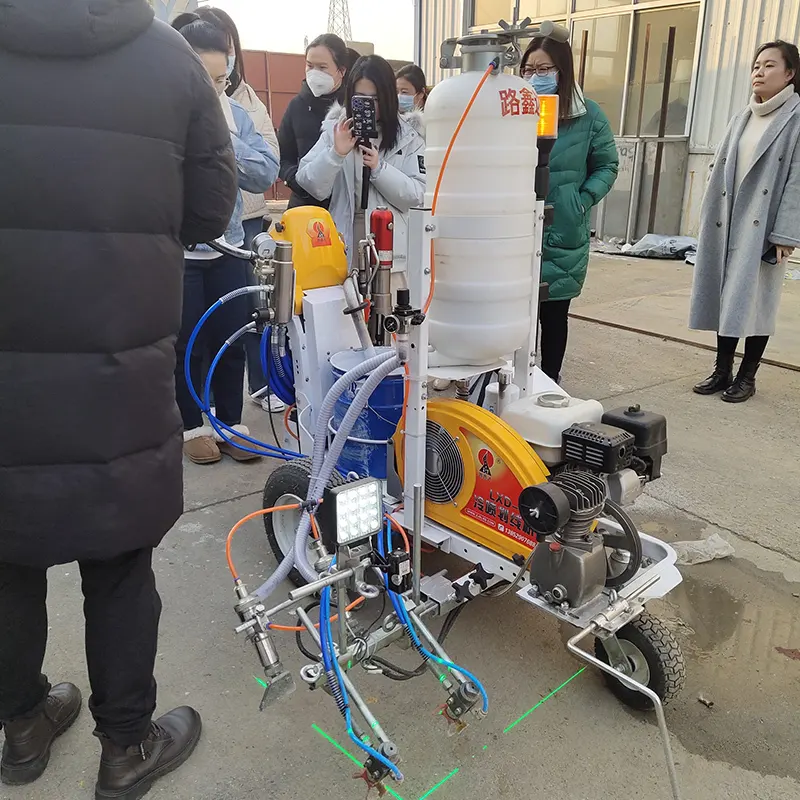

Product details of the road marking paint machine
Product Description
Jiangsu Luxinda Traffic Facilities Co.,Ltd.'s raw materials actively comply with international green specifications and customer requirements. The product has a complete life cycle due to the strict testing which is in line with the internal and external standards. Thus, the product is durable in use for a long time. Under technical support, road marking paint machine is of good quality.
Related Parameters
|
Specification |
|
|
Feature |
Self Propelled type, High pressure airless spraying |
|
Fuel |
Gasoline |
|
Engine |
5.5PS (Honda engine), electrical starting |
|
pointer |
Green laser pointer |
|
Lamp |
LED Lamp |
|
Control panel |
Micro Computer Control panel |
|
Glass beads dispenser |
Pneumatic glass beads dispenser |
|
Pump |
hydraulic plinger pump, Imported from Germany |
|
Max flow |
9L/min |
|
Max working pressure |
23MPA |
|
Spraying width |
0-300mm(single gun) |
|
0-600mm(double gun) |
|
|
Spraying thickness |
0.2-0.4mm |
|
Max working speed |
13km/h |
|
Max Nozzle Size |
0.048 (Single spray gun) |
|
0.033 (Double spray gun) |
|
|
Aluminium oil tank capacity |
13L |
|
High pressure pipe length |
15m |
|
Size and Weight |
1660×1050×1000mm 145kg |
Product Details
Company Feature
• Our company can provide high quality and efficient management consulting service for the vast number of users at any time.
• Founded in our company has been engaged in the industry for and now has accumulated rich industry experience.
• We not only sell our products throughout the country, but also export them to Southeast Asia, the Middle East, Africa and other countries and regions.
• Luxinda is located in a place with traffic convenience, which is conducive for both small and large purchase.
Luxinda is dedicated to serving you. Your consultation and partnership are welcome!
