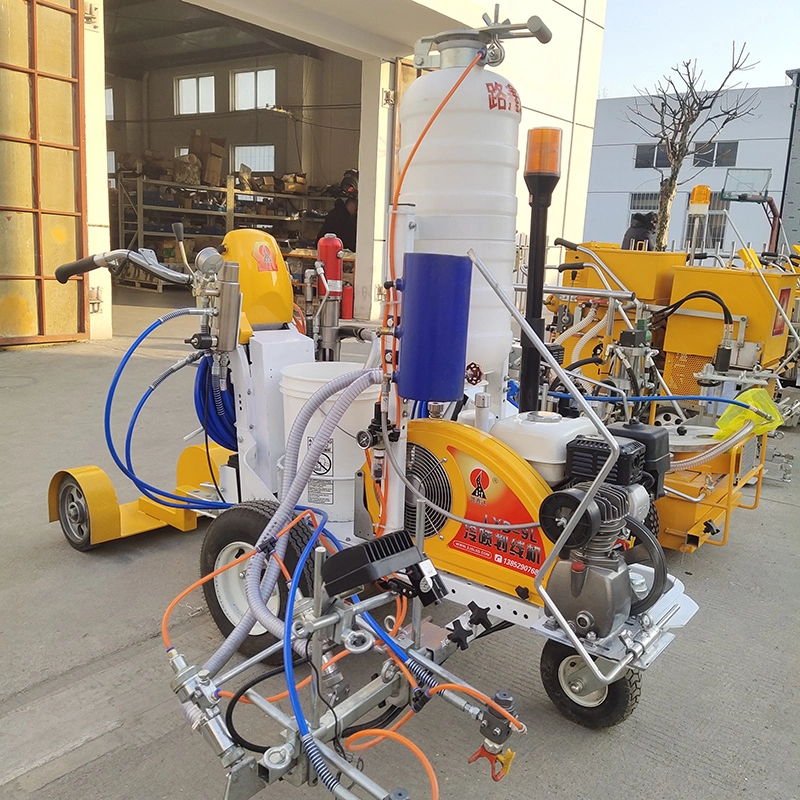

LXD-9L self propelled automatic cold paint spray road marking machine
Specification
Feature: Self Propelled type,High pressure airless spraying
Fuel: Gasoline
Engine: 5.5PS (Honda engine),electrical starting
Pointer: Green laser pointer
Lamp: LED Lamp
Control panel: Micro Computer Control panel
Glass beads dispenser: Pneumatic glass beads dispenser
Pump: hydraulic plinger pump,Imported from Germany
Related Parameters
|
Specification |
|
|
Feature |
Self Propelled type, High pressure airless spraying |
|
Fuel |
Gasoline |
|
Engine |
5.5PS (Honda engine), electrical starting |
|
pointer |
Green laser pointer |
|
Lamp |
LED Lamp |
|
Control panel |
Micro Computer Control panel |
|
Glass beads dispenser |
Pneumatic glass beads dispenser |
|
Pump |
hydraulic plinger pump, Imported from Germany |
|
Max flow |
9L/min |
|
Max working pressure |
23MPA |
|
Spraying width |
0-300mm(single gun) |
|
0-600mm(double gun) |
|
|
Spraying thickness |
0.2-0.4mm |
|
Max working speed |
13km/h |
|
Max Nozzle Size |
0.048 (Single spray gun) |
|
0.033 (Double spray gun) |
|
|
Aluminium oil tank capacity |
13L |
|
High pressure pipe length |
15m |
|
Size and Weight |
1660×1050×1000mm 145kg |
