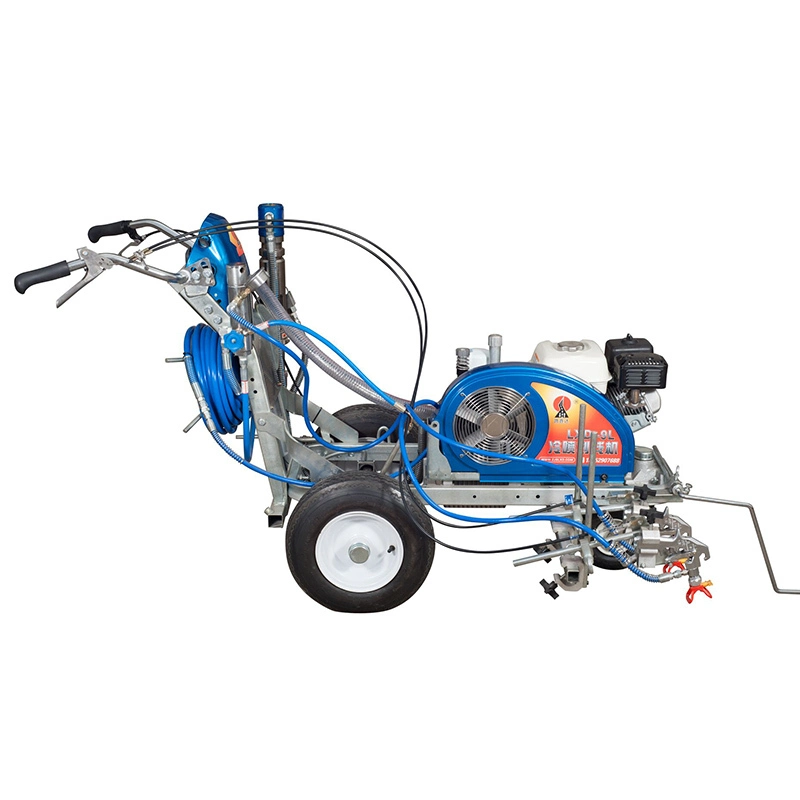

LXD-9L hand push high pressure airless cold paint road marking machine
LXD-9L is the the fastest among our cold paint road marking machines, its working speed can reach 13kh/h, Since it has powerful hydraulic system which make it work well under harsh environment.
Parameter
Feature: Hand-push, high pressure airless spraying
Fuel: gasoline
Engine: 5.5PS (Honda engine)
Pump: built-in Reversing hydraulic pump(imported from German)
Max flow: 9L/min
Max working pressure: 23MPA
Related Parameters
|
Specification |
|
|
LXD-9L is the the fastest among our cold paint road marking machines,its working speed can reach 13kh/h, |
|
|
Parameter |
|
|
Feature |
Hand-push,high pressure airless spraying |
|
Fuel |
gasoline |
|
Engine |
5.5PS (Honda engine) |
|
Pump |
built-in Reversing hydraulic pump(imported from German) |
|
Max flow |
9L/min |
|
Max working pressure |
23MPA |
|
Spraying width |
0-300mm(single gun) |
|
0-600mm(double gun) |
|
|
Spraying thickness |
0.2-0.4mm |
|
Max working speed |
13km/h |
|
Max Nozzle Size |
0.048 (Single spray gun) |
|
0.033 (Double spray gun) |
|
|
Nozzle |
Imported from USA |
|
Aluminium oil tank capacity |
13L |
|
High pressure pipe length |
15m |
|
Size and Weight |
1660×1050×1000mm 130kg |
