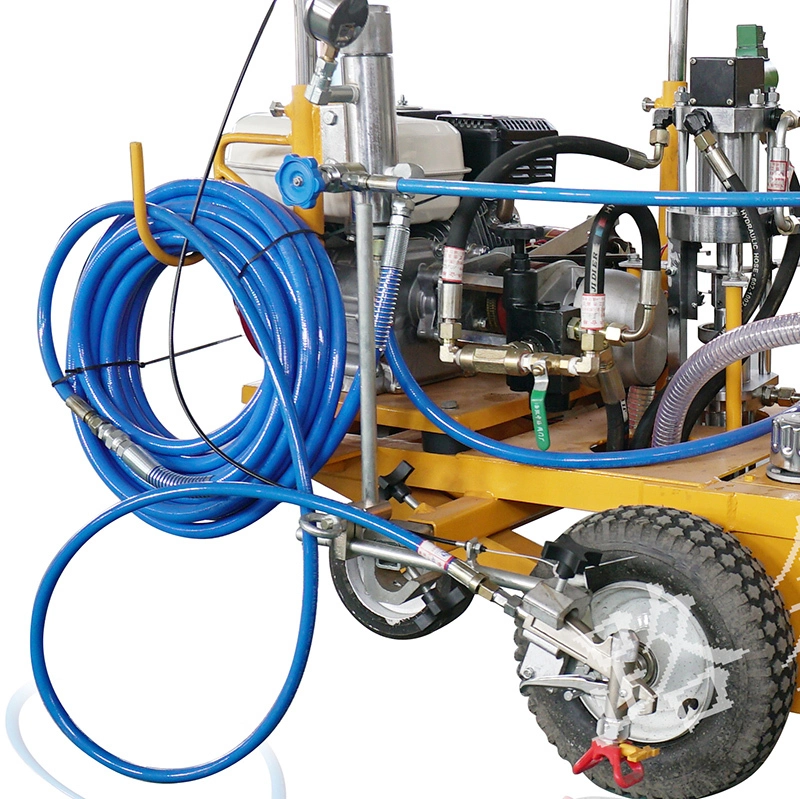

LXD-6L hand push high pressure airless cold paint road marking machine
It is special equipment to normal temperature paint construction. It is suitable for roads, highway, parking lot,airport, station. It can mark a straight line, dotted line, curve, zebra crossing, arrows, etc.
It is the spray equipment with high pressure,equal discharge and airless. It use gasoline engine to drive single plunger pump to work,which can generate high pressure inside the machine.The lines are common in thickness and angles are clear. Because of the direction bar in the spraying gun, the line can be adjusted to certain width conveniently.
Engine: 5.5HP gasoline engine
Work pressure: 10-18Mpa
Max Flow: 6L/min
Spraying width: 50-300mm(single gun)
Related Parameters
|
Specification |
|
|
It is special equipment to normal temperature paint construction. It is suitable for roads, highway, parking lot,airport, station. It can mark a straight line, dotted line, curve, zebra crossing, arrows, etc. |
|
|
Engine |
5.5HP gasoline engine |
|
Work pressure |
10-18Mpa |
|
Max Flow |
6L/min |
|
Spraying width |
50-300mm(single gun) |
|
Spraying thickness |
0.2-0.6mm |
|
Size |
1180×860×1000mm |
|
Net weight |
145kg |
Product Details
Application Scenario
