Over 20 years manufacturing experience of Road marking machine and road marking removal machine.

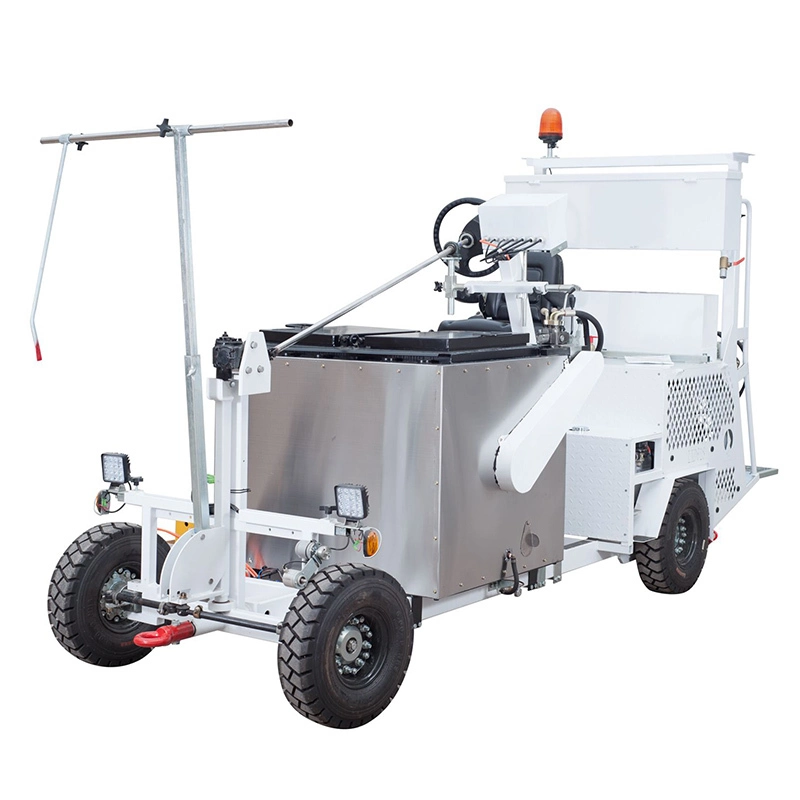

LXD-618 Driving type thermoplastic(convex) road marking machine

Working pressure: 7bar, Silent safety valve

Power Systems: 12V

Thermoplastic container: 0.39m³, with hydraulic agitator (According to customer requirements)

Heating method: Gas heating

Additional equipment: Available with 15.20.30.40cm scraper, oscillating bucket (customized as required)

Additional equipment: On request, profiles

Technical Data

Engine	Kubota 1505 type diesel engine 43HP
Fuel	Diesel Oil
Electronic system	LXD electronic control system
Steering	Powerful standard mechanical steering system according to the requirements mentioned
Drive / braking system	Hydrostatic transmission, also used as service brake, parking brake hydraulically controlled multi-disc brake
Wheel	6.00-9NHS * 4
Compressor	0.12m³ / min
Working pressure	7bar, Silent safety valve
Power Systems	12V
Thermoplastic container	0.39m³, with hydraulic agitator (According to customer requirements)
Heating method	Gas heating
Additional equipment	Available with 15.20.30.40cm scraper, oscillating bucket (customized as required)
Additional equipment	on request, profiles
Discharge	Pneumatic Opening/closure,with pedal controls
Glass beads Equipment	Spraying, adjustable pressure
Glass beads Tank Capacity:	0.07m³
Machine Weight	About 2000kg
Machine Size	About length 4m（not include pointer）* width 1.4（not include shoe） m* height 2.2 m（adjustable）
