Paint Line Marking Machine by

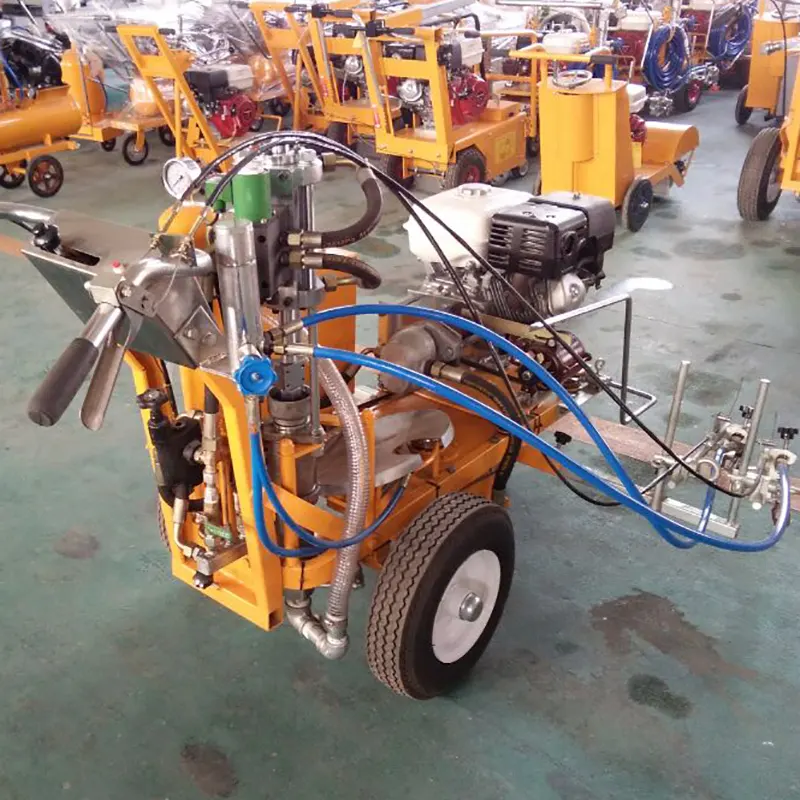

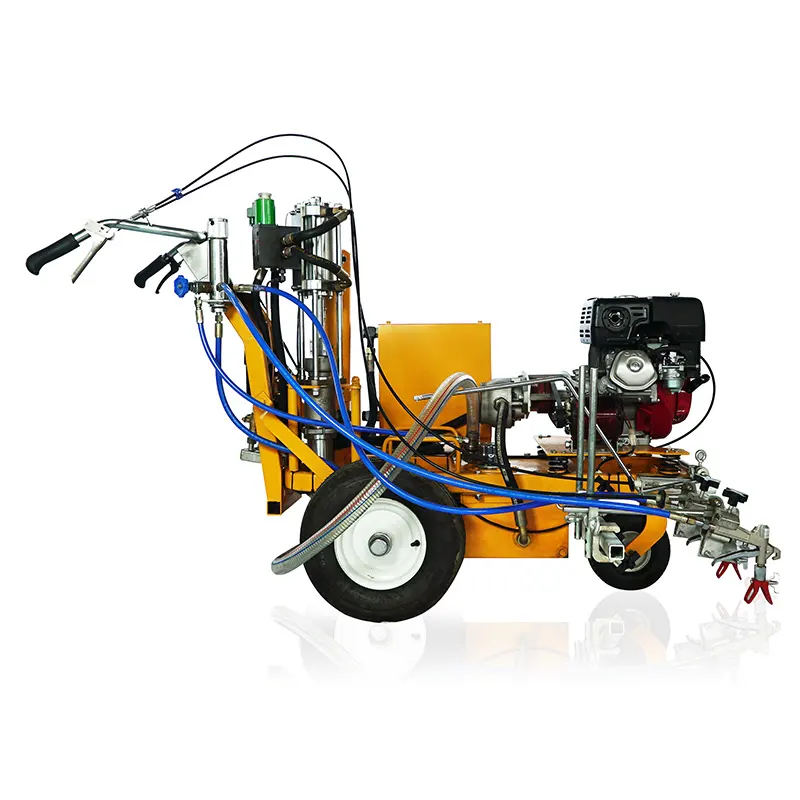

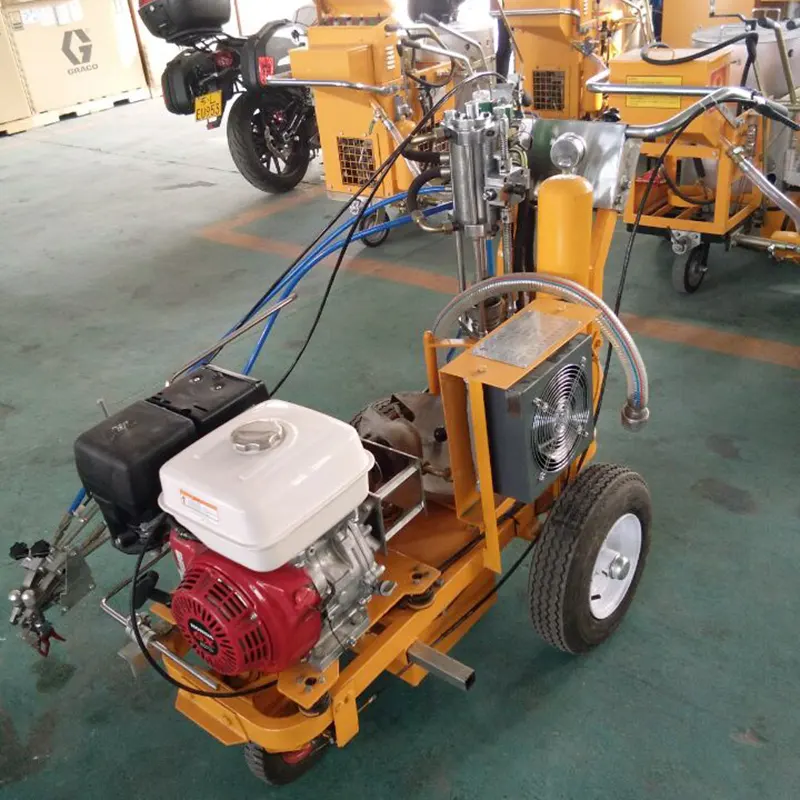

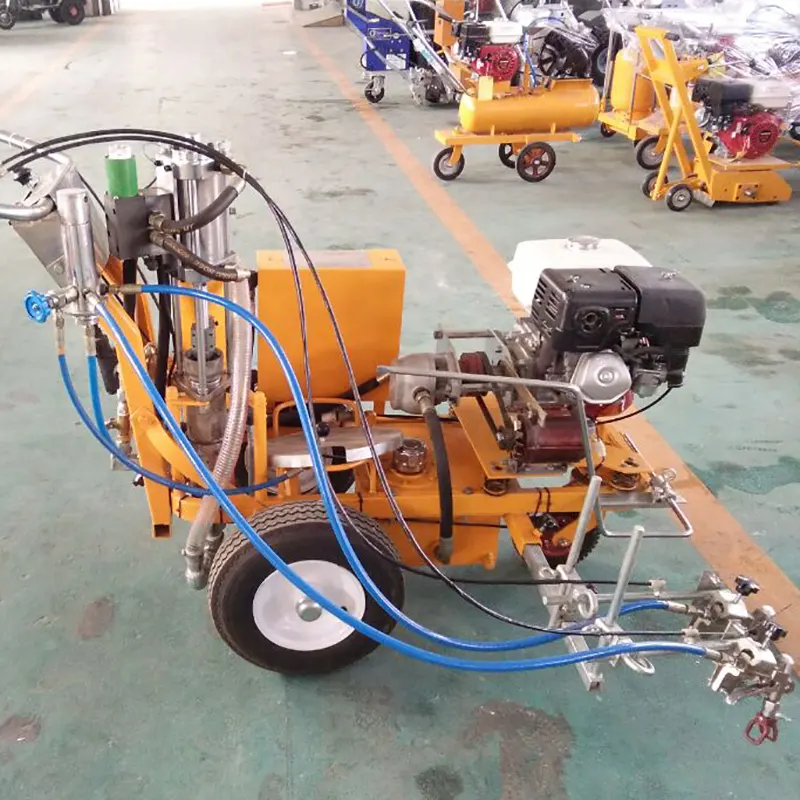

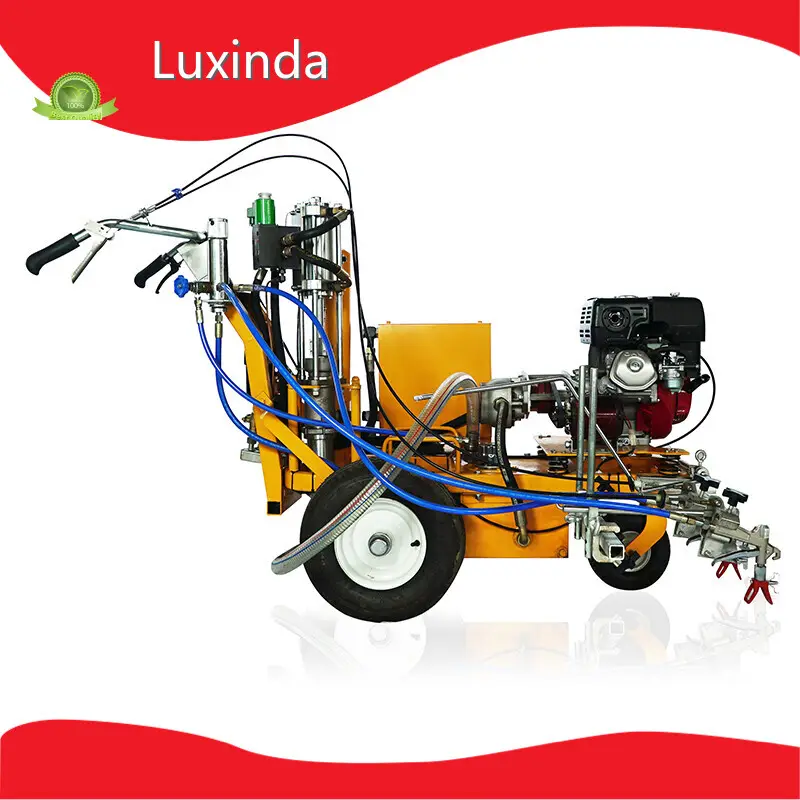

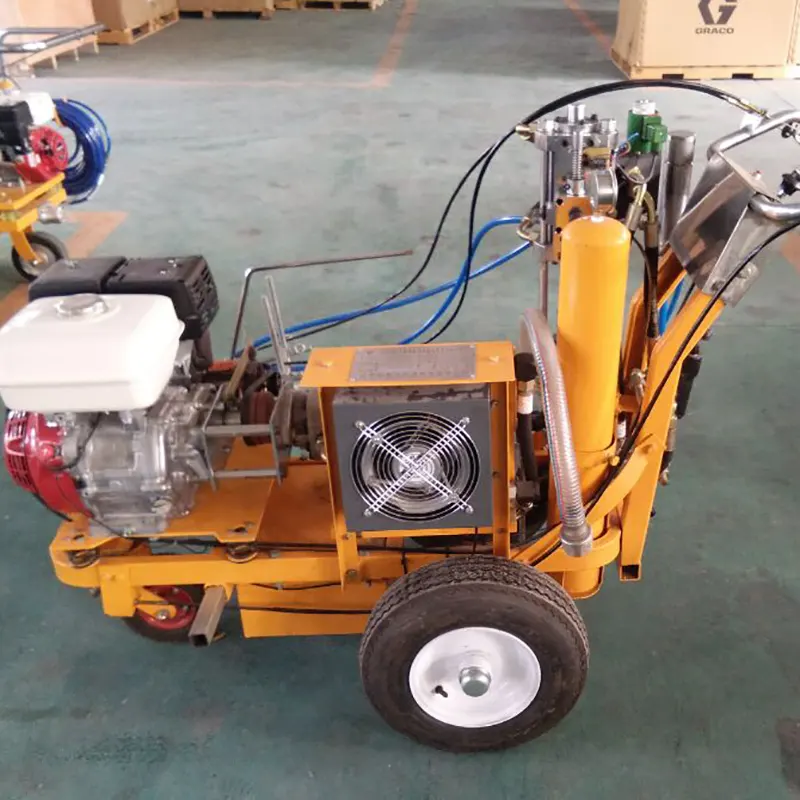

Product details of the paint line marking machine
Product Information
become more famous mainly for its independent designs. With the extraordinary quality, it can attract the attention of most customers. Jiangsu Luxinda Traffic Facilities Co.,Ltd. has professional production and management personnel.
Related Parameters
|
Specification |
|
|
It is special equipment to normal temperature paint construction. It is suitable for roads, highway, parking lot, airport, station. It can mark a straight line, dotted line, curve, zebra crossing, arrows, etc. It is the spray equipment with high pressure, equal discharge and airless. It use gasoline engine to drive single plunger pump to work, which can generate high pressure inside the machine. The spray lines are common in thickness and angles are clear. Because of the direction bar in the spraying gun, the line can be adjusted to certain width conveniently. Equipped with the computer line controller, the space between dotted lines can be changed according to the project requirements. |
|
|
Engine |
9HP gasoline engine |
|
Work pressure |
10-18Mpa |
|
Max Flow |
18L/min |
|
Spraying width |
0-300mm(single gun) |
|
0-600mm(double gun) |
|
|
Spraying thickness |
0.2-0.4mm |
|
Size |
1800×1020×1100mm |
|
Net weight |
180kg |
Product Details
Application Scenario
Company Advantage
• With a focus on sci-tech innovation, Luxinda has an elite team with strong R&D capability and great technical ability. We also closely cooperate with many domestic research institutes and leading companies in the industry.
• Our company is located in a position with pleasant surroundings and convenient traffic. And the outward transportation of products is convenient based on that.
• Based on the service concept of 'customer first, service first', our company is dedicated to providing our clients with products and services of the highest quality.
Luxinda is a professional manufacturer of road marking machine,Road marking removal,thermoplastic preheater,thermoplastic road marking machine,cold paint road marking machine,Two component road marking machine,thermoplastic convex road marking machine. The products are available in favorable price and timely delivery. Please feel free to contact us if in need.
