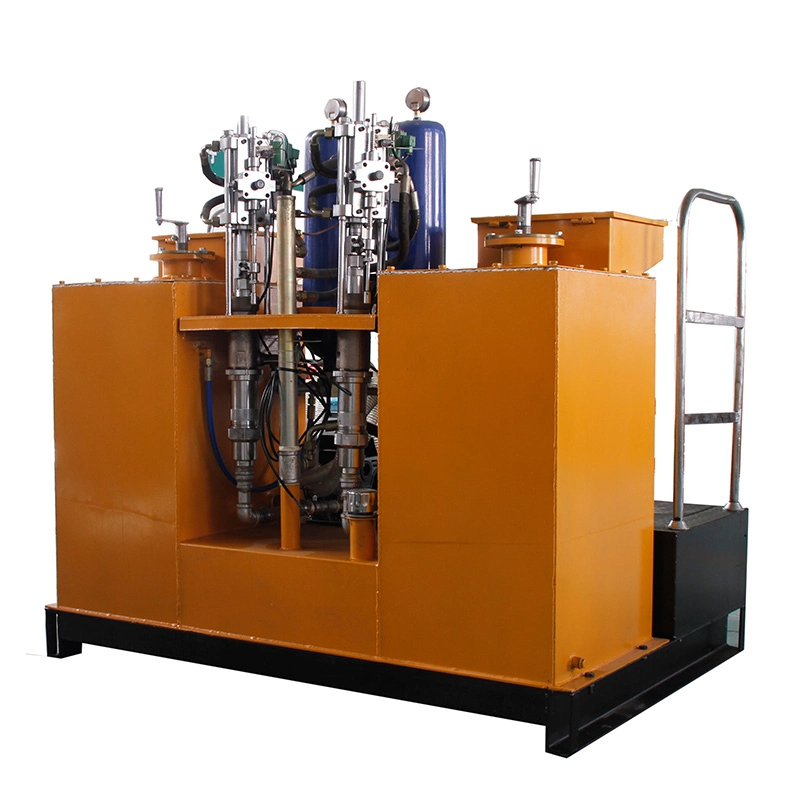

LXD 18L-2 truck mounted double cylinder double pump cold paint road marking machine
It is designed for large-scale road, especially apply to city road, airport and express way etc.
It can mark actual line,dotted line, double yellow line etc.
It is equipped with double spray gun and double paint bucket, also can add additional manual spray gun, to make it mark lines in different color at the same time.
Maximum flow: 18L×2
Maximum work pressure: 30Mpa
Spraying width: 50-900mm
Spraying thickness: 0.2-0.6mm
Work performance: Four spray guns can work together
Dimension: 1530×1230×1380mm
Net weight: 820kg
Related Parameters
|
Specification |
|
|
It is designed for large-scale road,especially apply to city road,airport and express way etc. |
|
|
Maximum flow |
18L×2 |
|
Maximum work pressure |
30Mpa |
|
Spraying width |
50-900mm |
|
Spraying thickness |
0.2-0.6mm |
|
Work performance |
Four spray guns can work together |
|
Dimension |
1530×1230×1380mm |
|
Net weight |
820kg |
|
Main engine configuration |
Truck loading configuration |
|
270 Honda engine |
Automatic break line machine (SIMENS) |
|
Gear pump |
Manual controller (SIMENS) |
|
Oil tank |
Shelf of the spray gun (one group) |
|
Pressure regulator |
two solenoid valves (COMAZZI) |
|
Accumulator |
two automatic spray gun |
|
Reverser |
four pieces of high pressure tube(3.5m) |
|
Reversing oil tank |
Rotary encoder(OMRON) |
|
Paint high pressure pump |
10m High pressure tube,one manual spray gun |
|
Strainer |
One Yellow Paint bucket and one white Paint bucket |
|
Air compressor |
One set of Water line shelf |
