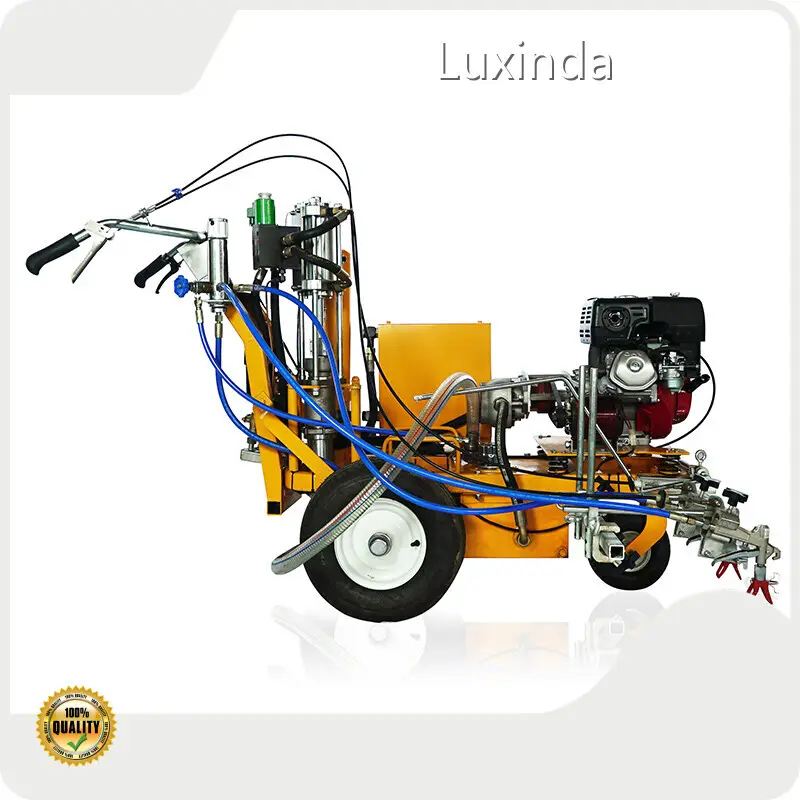

Paint Line Marking Machine by-1
Product details of the paint line marking machine
Quick Overview
The design of paint line marking machine is elaborately designed with the combination of functionality and aesthetics. The innovative structure of this product has greatly improved its basic functions. . Jiangsu Luxinda Traffic Facilities Co.,Ltd. has designed and developed a batch of paint line marking machine products that are deeply loved by customers.
Product Introduction
Luxinda pursues perfection in every detail of paint line marking machine, so as to show quality excellence.
Related Parameters
|
Specification |
|
|
It is special equipment to normal temperature paint construction. It is suitable for roads, highway, parking lot, airport, station. It can mark a straight line, dotted line, curve, zebra crossing, arrows, etc. It is the spray equipment with high pressure, equal discharge and airless. It use gasoline engine to drive single plunger pump to work, which can generate high pressure inside the machine. The spray lines are common in thickness and angles are clear. Because of the direction bar in the spraying gun, the line can be adjusted to certain width conveniently. Equipped with the computer line controller, the space between dotted lines can be changed according to the project requirements. |
|
|
Engine |
9HP gasoline engine |
|
Work pressure |
10-18Mpa |
|
Max Flow |
18L/min |
|
Spraying width |
0-300mm(single gun) |
|
0-600mm(double gun) |
|
|
Spraying thickness |
0.2-0.4mm |
|
Size |
1800×1020×1100mm |
|
Net weight |
180kg |
Product Details
Application Scenario
Company Advantages
Jiangsu Luxinda Traffic Facilities Co.,Ltd. is a production company located in zhen jiang, and the key product is road marking machine,Road marking removal,thermoplastic preheater,thermoplastic road marking machine,cold paint road marking machine,Two component road marking machine,thermoplastic convex road marking machine. Our company persists in the concept of 'faithful management, continuous improvement', and the tenet of 'quality oriented, customer first'. Based on this, we seek to provide customers with all-round quality services while achieving considerable development. We look forward to working with all new and old customers to create brilliant future. Luxinda has a group of high quality professionals with strict training, which provides strong support for the development and growth. Luxinda always adheres to the service concept of 'meeting customer needs'. And we are committed to providing customers with a one-stop solution that is timely, efficient and economical.
We value honesty greatly and always keep the promise. And our products are complete in kinds and reliable in quality. If you have any needs, feel free to contact us at any time.
