Product details of the pavement marking removal equipment

Product Information

pavement marking removal equipment is manufactured by our dedicated and experienced technicians with years of experiences. We use the guaranteed raw materials we source for trusted suppliers to guarantee the quality of this product. Jiangsu Luxinda Traffic Facilities Co.,Ltd.'s production department can complete work order timely and achieve high quality standard.

Related Parameters

Technical parameter

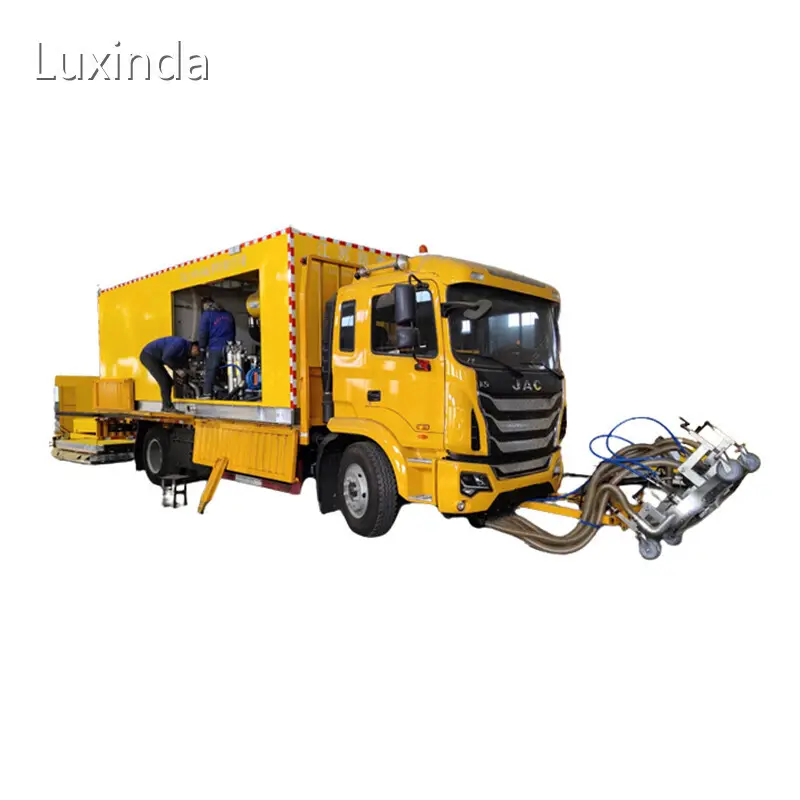

The machine mounted on Truck JAC K5, Vehicle performance and equipment matching, can apply for ordinary vehicle license and according to the provisions of inspection and examination. The high pressure water pump and other special components are integrated and installed in the protective cover, which can be easily separated from the vehicle.

Remove line width: maximum 30cm (adjustable from 15cm-30cm)

Operating speed: 10-20m/min (according to line thickness)

Engine: Weifang Weichai Power (Dowitz) Power: 255 kw Speed: 1800 r/min

Pump speed: 500 cycles per minute

Pressure: 2500bar

Flow: 46L／min

Plunger: cemented carbide 19.05

High pressure seal: imported high quality molding seal

Forced lubrication system and oil cooling system, imported high quality and safe blasting diaphragm

Full computer monitoring instrument box: oil temperature alarm, water temperature alarm, diesel engine speed, water pressure size, voltage display working time, machine fault display, water pressure precise pressure adjustment

Booster pump: the maximum pressure booster pump is 6kg

Filter: double layer stainless steel vertical filter secondary filter

Water supply protection system: low pressure protection system including water supply

Suction system: SSA vacuum pump, pressure -0.4bar, solid - liquid separation

Water tank: 700kg of sewage (without shutdown), 6T of clean water

Oil tank: 250L

The equipment is integrated with housing protection, and can be easily separated from the vehicle

Vehicle running control: uniform walking controller (without human control) with a minimum speed of 5m/min can cruise at a constant speed with the electronic shift of vehicle gear

Remote monitoring system of vehicle cab (the driver can monitor the clearance of the marking line of the vehicle in the cab through video images in real time)

The actuator up and down is controllled by Remote hydraulic , adjustable from 0° to 270°, removing line in left, middle and right direction

Size: 5.53m*2.2m*2.25m, Loading size: (JAC K5) :10.1m*2.55m*3.45m

Net weight: 7T(not include truck)

Standard data parameters list

General key component

● Front bracket module(1)

● Luxinda customized spray disc(3)

● Luxinda special nozzle(2)

● Truck required, For example: Jac truck, K5L cab, Engine: Yuchai , YC4S160-50, Gearbox: fast-gear, 6DS60T, front axle: 3.5T, rear axle: 8T, crossbeam: 230*75*6, tire: 10R22.5, vacuum tire. Carriage dimension: 6800*2450*600, gross mass: 16T, load capacity: 9.8T

● Installation and truck upgrade

● drive unit for moving(reduction gear)

● Installation and separation of fresh and waste water

● Computerized speed/pressure synchronization

● Starter kits wear out parts/tools

COMPANY STRENGTH

Main configuration - removing rubber

Category	Particulars	Qty	Brand	Description
Power system	Diesel engine	1	Weichai dao yitz	255kw construction machinery supporting electric jet engine with ecu control system
	Air compressor	1	Weichai dao yitz	Weichai daoyitz, custom-made air compressor, small size, high efficiency.
	Fuel tank	1	Lxd	The thickened customized oil tank has a capacity of about 250l
High-pressure components	Three-throw ram pump	1		Pressure:2500bar Flow:46l/min Imported materials, technical processing
	Pressure meter	1	German wika
	Pneumatic pressure regulating valve	1	Japan
	Explosion-proof seat	1
Transmission parts	Coupling shaft coupling	1	German centre	Germany imported elastic coupling, product quality is stable and reliable
	Water filter	2	Lvwei	Domestic supporting, domestic filter industry well-known brand
	Booster pump	1	South pump industry	Export brand, stable and reliable performance
Control system	Control cabinet	1	Lxd	Customized imported controller, strong ability to expand, stable performance, powerful, simple to use, ip65 protection
Chassis system	Chassis	1	Lxd	The bottom angle of diesel engine and pump installation is processed by large milling machine to ensure the flatness of installation
Suction system	Vacuum pump	1	Sino-japanese joint venture ssr	We can form a suction pressure of -0.4 to ensure perfect results
Rubber removal head		1	Imported	Max pressure:3000bar Max flow:46l/min Working width:300mm Weight:About 50kg Rpm:About 1500-2000rpm，adjustable according to the angle of the jet rod; there are 12 or 24 pcs nozzles. Main material: Special stainless steel; Sealing form: Engineering plastic seal; With protective cover and hand push rod; Connection thread: 1-1/8unf internal thread;
Separation system	304 stainless steel water tank	2	Lxd	Clean water tank about 6 tons, sewage tank can be customized
	Vacuum separation technique	1	Winter grun	Water and slag are recycled simultaneously
	Water and slag air filter	1	Winter grun
Vehicle walking system	Turtle gear device	1	Lxd	Model: New type jac k5l
				Transmission gear	Engine speed	Vehicle gear	Speed
				High gear	Idling 770r/min	First gear	75m/min
				Low gear	Idling 770r/min	First gear	3±0.1m/min
				Low gear	1000r/min	First gear	40.1m/min
				Low gear	1500r/min	First gear	5.8m±0.1m/min
				The current ratio 23.75

Product Details

c01 (1)

c01 (2)

c01 (3)

Application Scenario

QQ图片20170118093834

QQ图片20170118093850

QQ图片20170118093831

QQ图片20170118093825
