Driving Type Thermoplastic Road Marking Machinery - --2
Company Advantages
· Professional design for driving type thermoplastic road marking machinery is a big advantage for
· The product has withstood the tests of our professional QC team as well as the authoritative third party.
· take effective measures to ensure the quality of driving type thermoplastic road marking machinery.
Related Parameters
|
Engine |
Kubota 1505 type diesel engine |
|
Fuel |
Diesel oil |
|
Electronic system |
LXD electronic system, Electronic system with display for control and showing of machine operation functions |
|
Coating technology |
airless, under high pressure |
|
steel |
Powerful standard mechanical steering systems are available upon request |
|
Drive/brake system |
Hydrostatic transmission, also used as a driving brake, multi disc brake controlled by parking brake hydraulic |
|
Movement |
Self-propelled with 4 wheels |
|
wheel |
6.00-9NHS* 4 wheels |
|
compressor |
0.12m³/min |
|
Working pressure |
7bar，Mute relief valve |
|
electrical power system |
12V |
|
hydraulic pump |
Double Graco Pump |
|
Max flow |
15.1L/min*2 Pump |
|
Paint pump control mode |
Automatic reciprocating cylinder |
|
line thickness |
0.2-0.4mm(adjustable) |
|
Line width |
100-900mm(adjustable) |
|
Spray gun quantity |
2 pneumatic spray guns and 1 manual spray gun(addtional on request) |
|
Paint tank capacity |
0.23m³*2(can be customized according to reuqirement) |
|
Glass beads system |
dispenser and automatic gun，working pressure adjustable |
|
Glass beads tank capacity |
0.07m³, |
|
Size |
Approximately 4m(length)* 1.4(width) m* 2.2 m(height) |

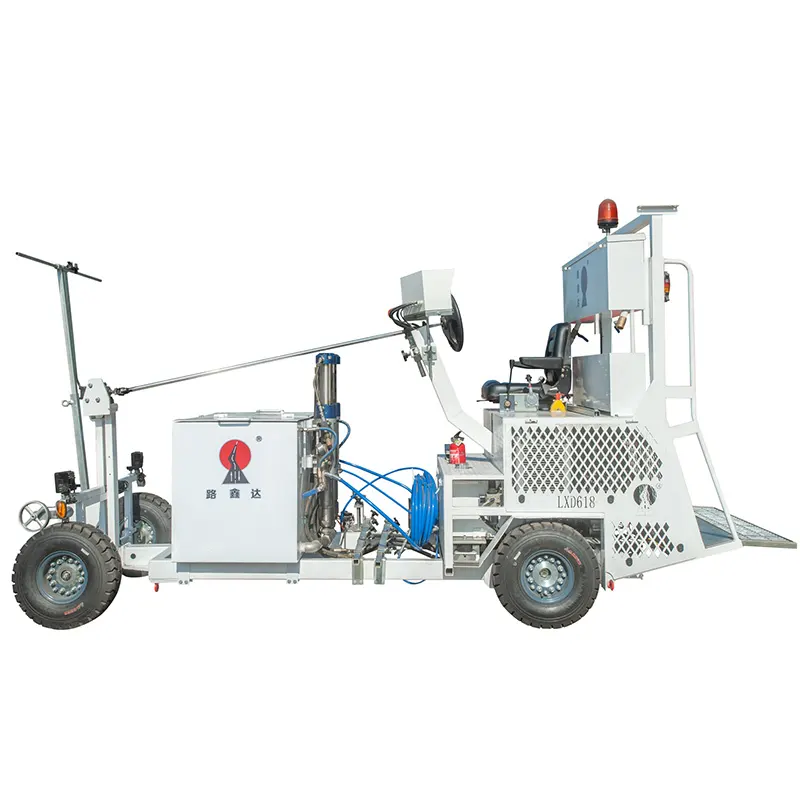

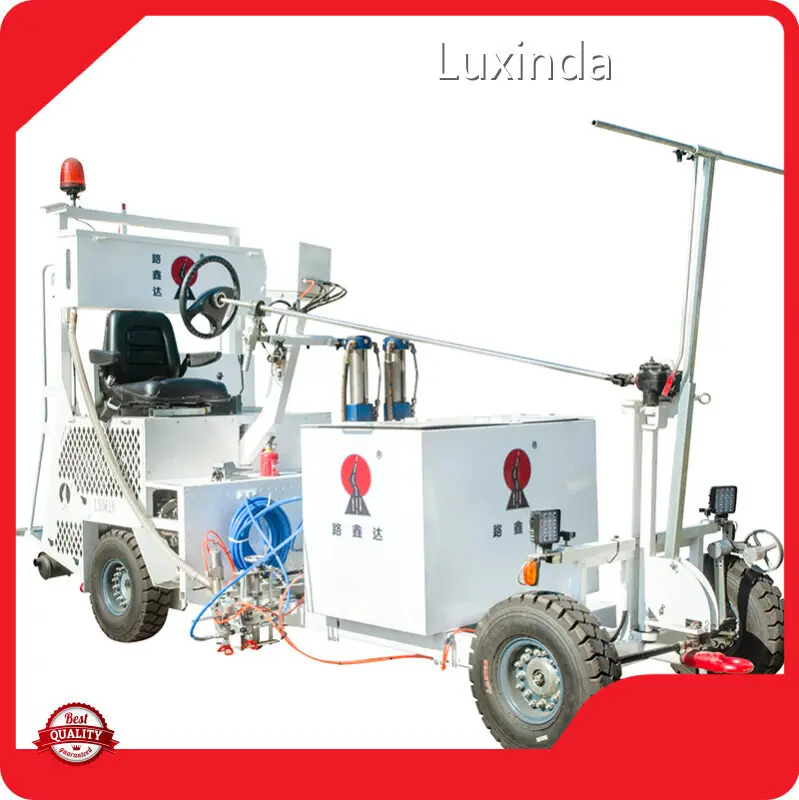

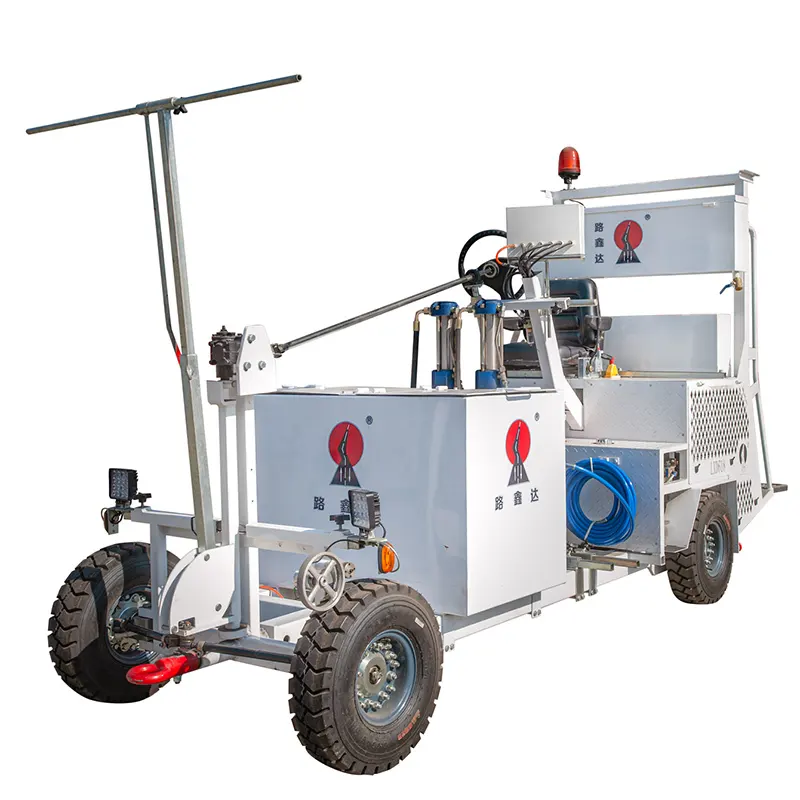

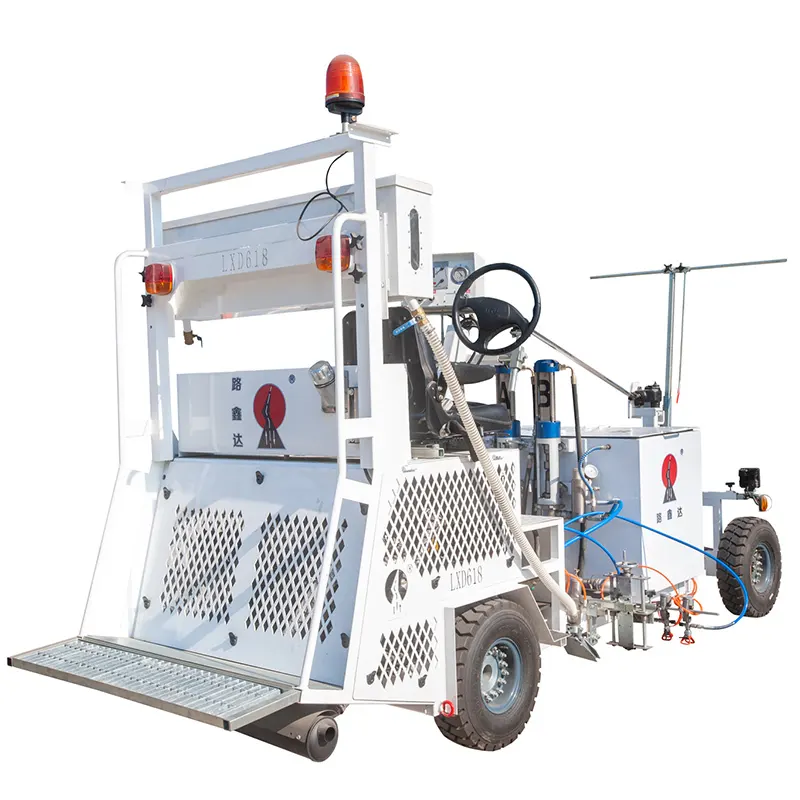

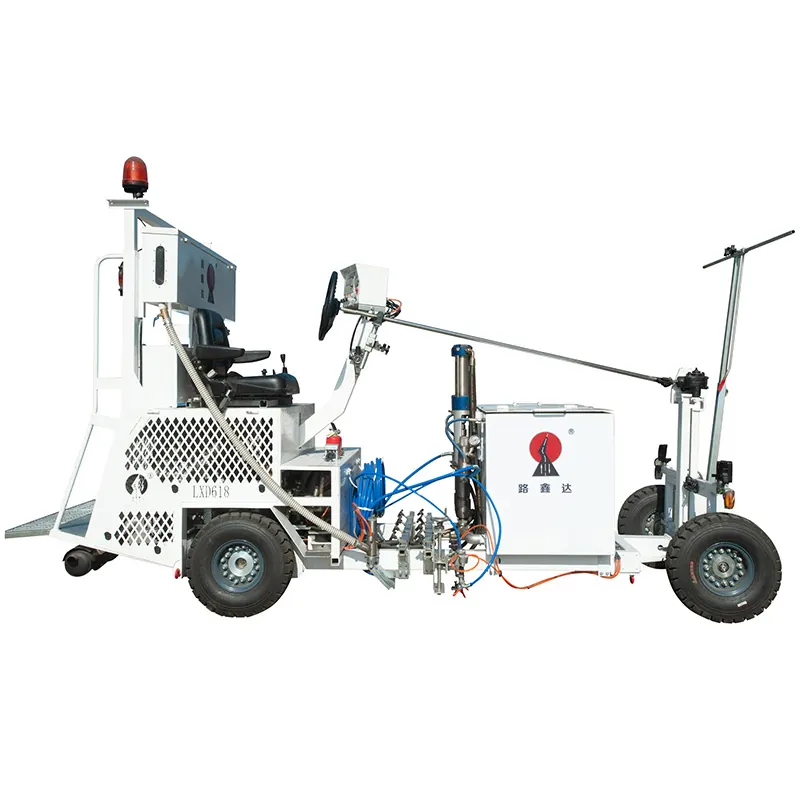

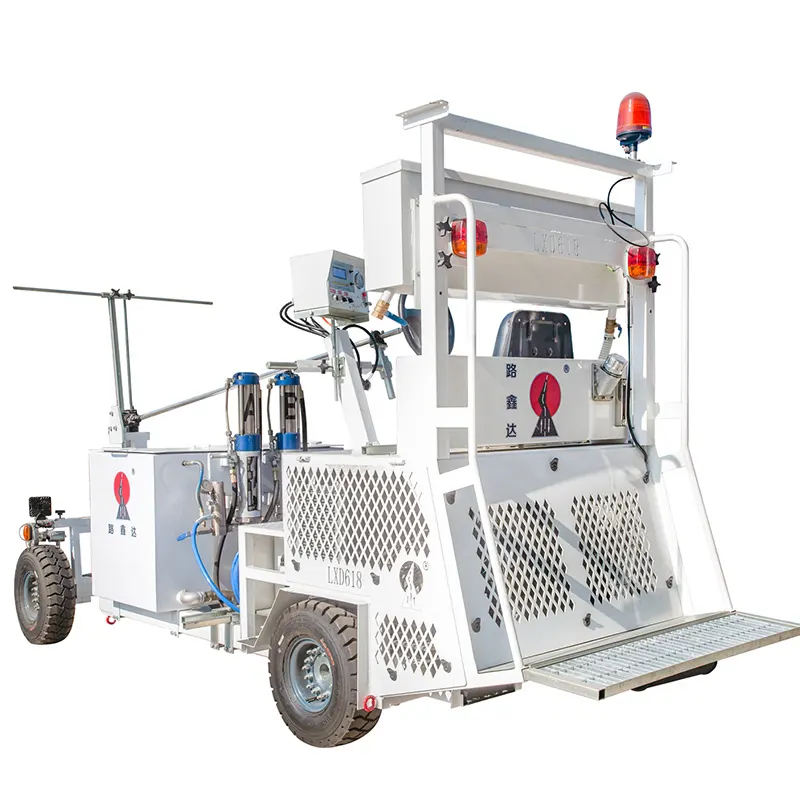

Product Details
Company Features
· Jiangsu Luxinda Traffic Facilities Co.,Ltd. includes a wealth of manufacturing expertise driving type thermoplastic road marking machinery.
· Our manufacturing plant is next to the airport and port. This advantageous location provides us with a good transportation base for the distribution of our products. Our factory is home to a series of modern and advanced production facilities. This advantage allows us to have good control over our production process and finish the project on time. Our factory features a reasonable layout. We have set up a highly efficient conveying route throughout the factory, from the delivery of raw materials to final despatch.
· Everything we do is guided by principles of "Excellence, Integrity, and Entrepreneurship". They have defined our company character and culture.
Application of the Product
The driving type thermoplastic road marking machinery produced by Luxinda is very popular in the market and is widely used in industry.
Luxinda can provide customers with one-stop solutions of high quality, and meet customers' needs to the greatest extent.
