Over 20 years manufacturing experience of Road marking machine and road marking removal machine.

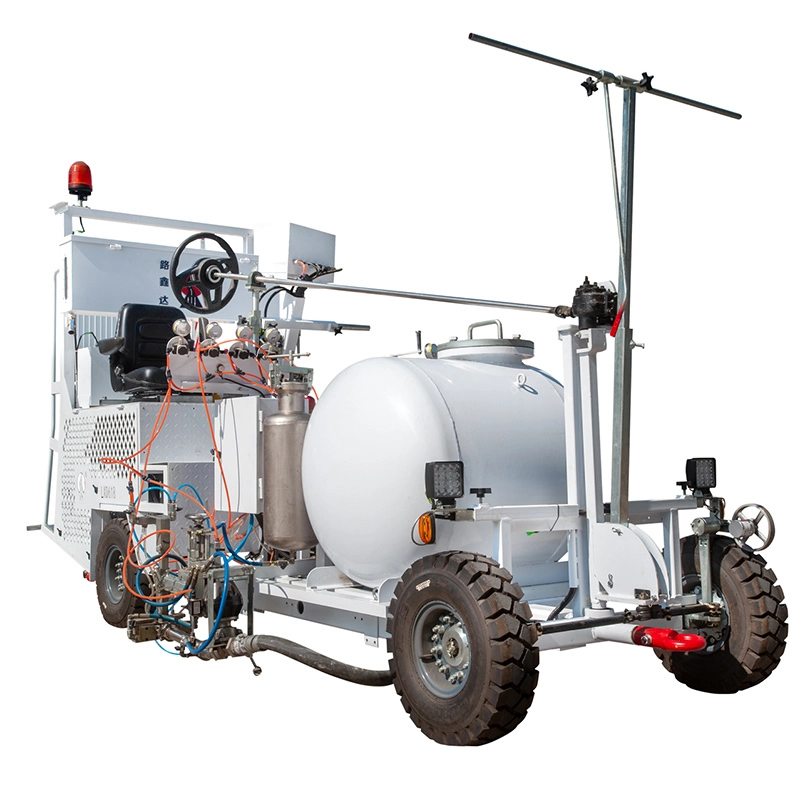

Driving type road marking machine for cold plastic-spotline

Engine: Kubota 1505 type diesel engine

Fuel: Diesel oil

Electrical system: LXD electronic control system

Steering: Powerful standard mechanical steering system according to the requirements mentioned

Drive / brake system : Hydrostatic transmission, also used as service brake, parking brake hydraulically controlled multi-disc brake

Wheels: 6.00-9NHS * 4

Compressor: 0.21m³ / min

Related Parameters

Engine	Kubota 1505 type diesel engine
Fuel	Diesel oil
Electrical system	LXD electronic control system
Steering	Powerful standard mechanical steering system according to the requirements mentioned
Drive / brake system	Hydrostatic transmission, also used as service brake, parking brake hydraulically controlled multi-disc brake
Wheels	6.00-9NHS * 4
Compressor	0.21m³ / min
Operating air pressure	7 bar, silenced safety valve
Paint pressure tank	385 ltr., with agitator, other container capacities on request
Mixing-system	98 : 2
Marker unit	screed box for solid line
Glass bead equipment	on request, metering bead dispenser up to 300 mm
weight	About 2000kg
Dimensions	About length 4m(not include pointer)* width 1.4(not include shoe) m* height 2.2 m(adjustable)
