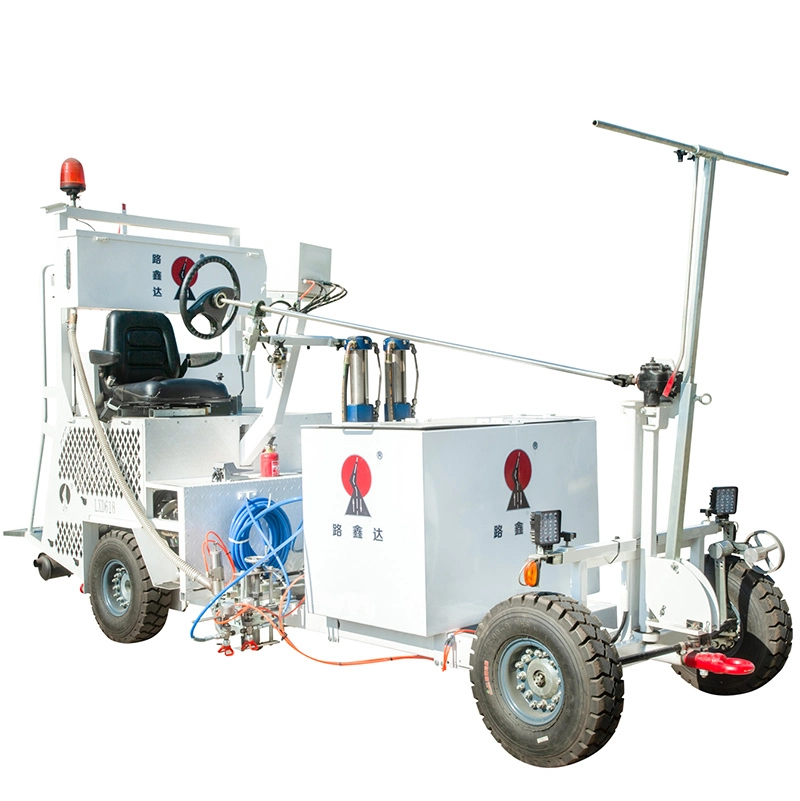

LXD-618 two component driving type thermoplastic road marking machinery paint spray machine
Engine: Kubota 1505 type diesel engine
Fuel: Diesel oil
Electronic system: LXD electronic system, Electronic system with display for control and showing of machine operation functions
Coating technology: Airless, under high pressure
Steel: Powerful standard mechanical steering systems are available upon request
Drive/brake system: Hydrostatic transmission, also used as a driving brake, multi disc brake controlled by parking brake hydraulic
Related Parameters
|
Engine |
Kubota 1505 type diesel engine |
|
Fuel |
Diesel oil |
|
Electronic system |
LXD electronic system, Electronic system with display for control and showing of machine operation functions |
|
Coating technology |
airless, under high pressure |
|
steel |
Powerful standard mechanical steering systems are available upon request |
|
Drive/brake system |
Hydrostatic transmission, also used as a driving brake, multi disc brake controlled by parking brake hydraulic |
|
Movement |
Self-propelled with 4 wheels |
|
wheel |
6.00-9NHS* 4 wheels |
|
compressor |
0.12m³/min |
|
Working pressure |
7bar，Mute relief valve |
|
electrical power system |
12V |
|
hydraulic pump |
Double Graco Pump |
|
Max flow |
15.1L/min*2 Pump |
|
Paint pump control mode |
Automatic reciprocating cylinder |
|
line thickness |
0.2-0.4mm(adjustable) |
|
Line width |
100-900mm(adjustable) |
|
Spray gun quantity |
2 pneumatic spray guns and 1 manual spray gun(addtional on request) |
|
Paint tank capacity |
0.23m³*2(can be customized according to reuqirement) |
|
Glass beads system |
dispenser and automatic gun，working pressure adjustable |
|
Glass beads tank capacity |
0.07m³, |
|
Size |
Approximately 4m(length)* 1.4(width) m* 2.2 m(height) |
Product Details
