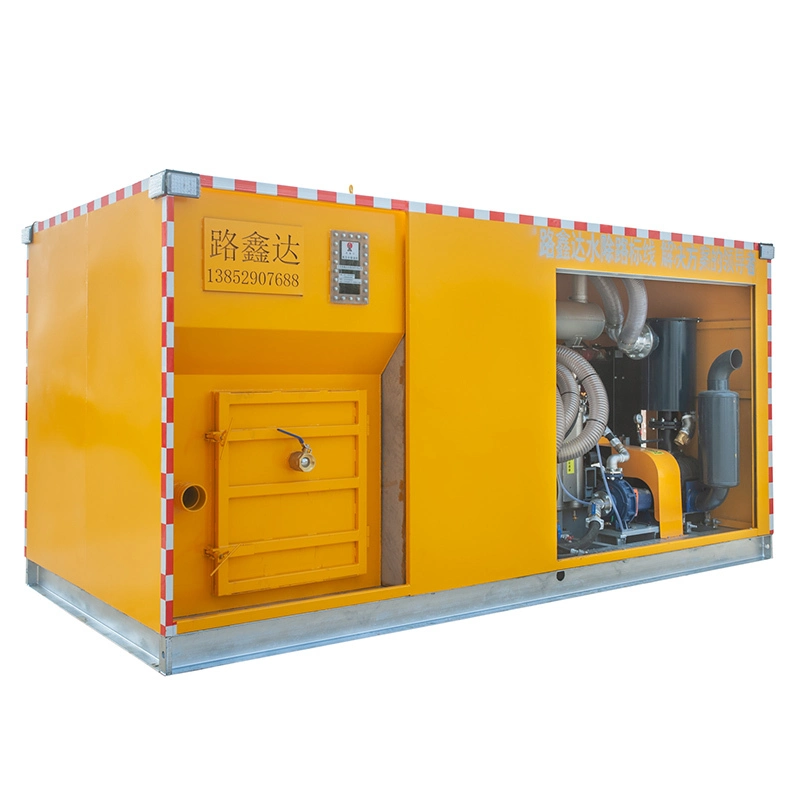

LXD90-3B high pressure water blasting road marking removal with suction system

Diesel engine

Deutz

Power

120kw

High pressure pump

America tetech90-3 pump
pressure: 140mpa, flow30l/min
bearing: Japan nsk; plunger: Hard alloy φ18;
High pressure seal:Imported seal

Remove speed

5-7m/min

Remove width

150-250mm

Suction system

German technology
Open-type non-pressure tank, can remove solid waste under construction

Suction pressure

-0.4

Booster pump

Max. 6kg

Water supply pipe

Stainless steel and withhold hose

Water supply protection system

With low pressure protection device for water supply

Filter

Double layer stainless steel vertical type filter

Computer monitor instrument box

Total computer monitor

Fresh water/waste water tank capacity

3000kg/2000kg（customized）

Machine size

5*2*2.2m

Machine weight
(empty weight)

5000kg
