Thermoplastic Line Marking Machine - --2

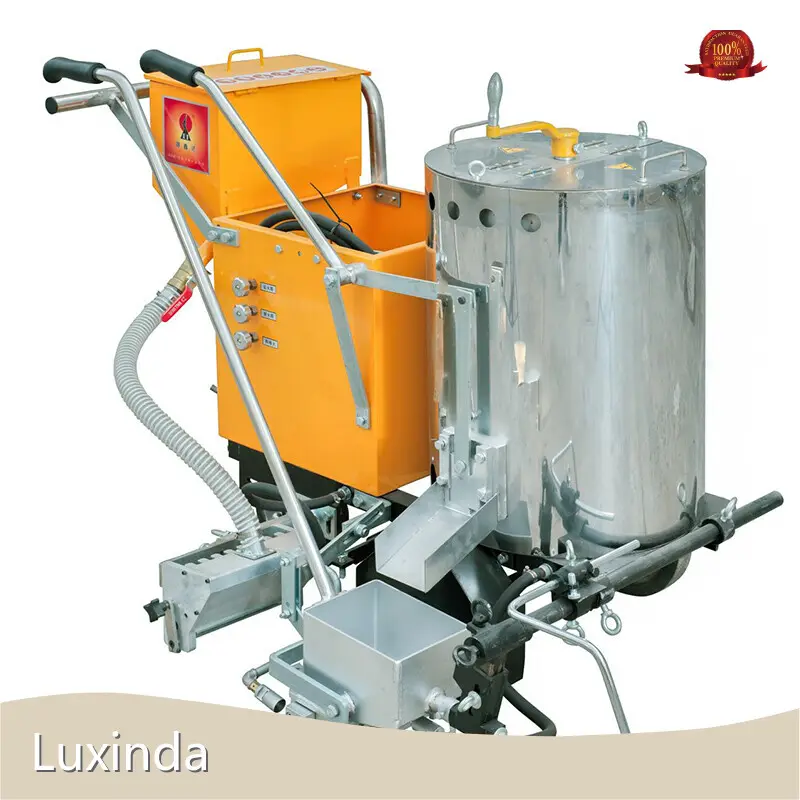

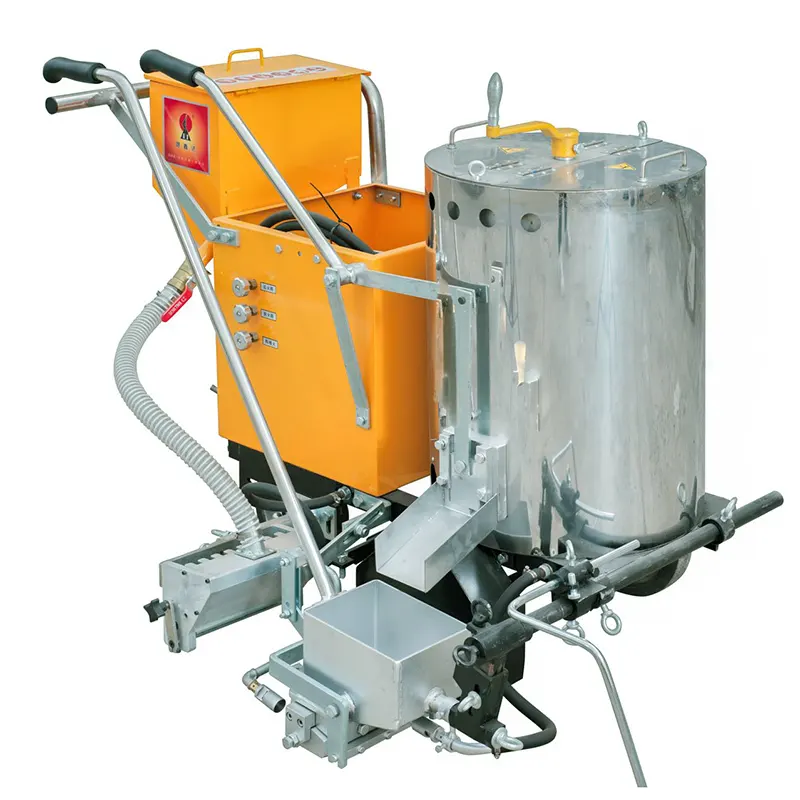

Product details of the thermoplastic line marking machine
Product Information
thermoplastic line marking machine is manufactured using the optimum quality raw material and advanced technology. One of the factors contributing to the popularity of this product is its excellent quality and strong reliability. Reliable quality can be seen in with its sophisticated design.
Related Parameters
|
Specification |
|
|

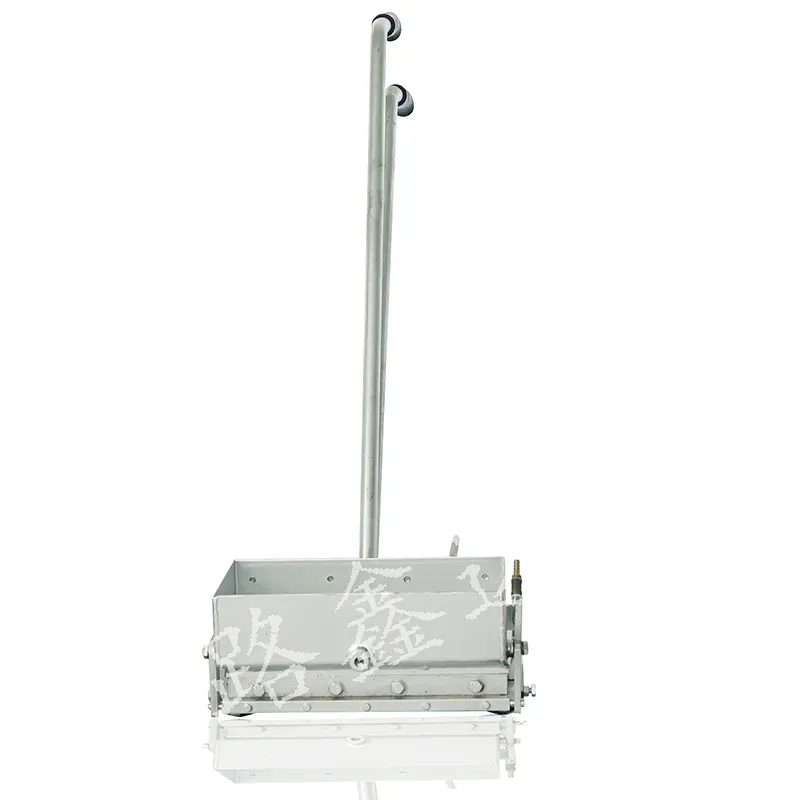

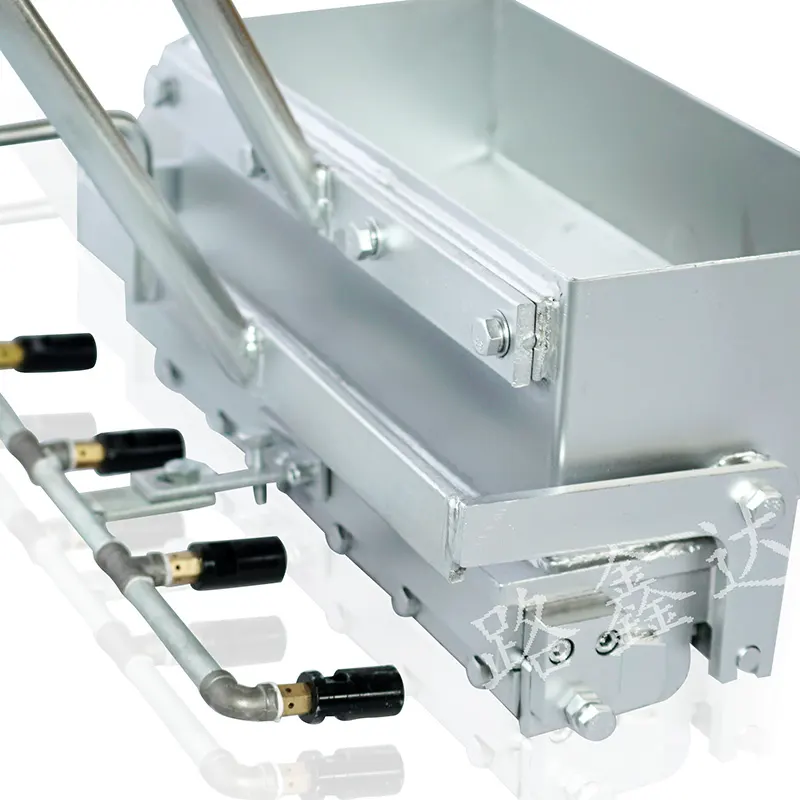

Marking equipment |
high-precision integrated marking shoe, screeding type, standard configuration: 150mm |
|
Grounded blade |
inlaid hard alloy,and also have pure alloyed grounded blade for your choice |
|
Paint container capacity |
100kg(4 bags thermoplastic paint) |
|
Paint container |
double layer stainless steel,equipped with inserted dismountable manumotive stirring device, the container is removable & interchangeable for quick color changes |
|
Glass beads container capacity |
10kg |
|
Glass beads container |
Automatic spreader |
|
Glass beads dispenser |
100/150/200/250/300/400/450mm(optional) |
|
Line thickness |
1.0-3.0mm(adjustable) |
|
50/100/150/200/250/300/400/450mm(optional) |
|
|
Heating temperature |
180~210℃ |
|
Heating Mode |
Liquefied petroleum gas heating |
|
Gas tank |
15kg |
|
wheel |
High temperature resistance soft rubber,rear wheel equipped with localiser to make the machine walk along the straight line |
|
Speed |
1.5km/h |
|
Driving method |
Hand-push |
|
Machine Weight |
126kg |
|
Dimension |
1150×850×950mm |
