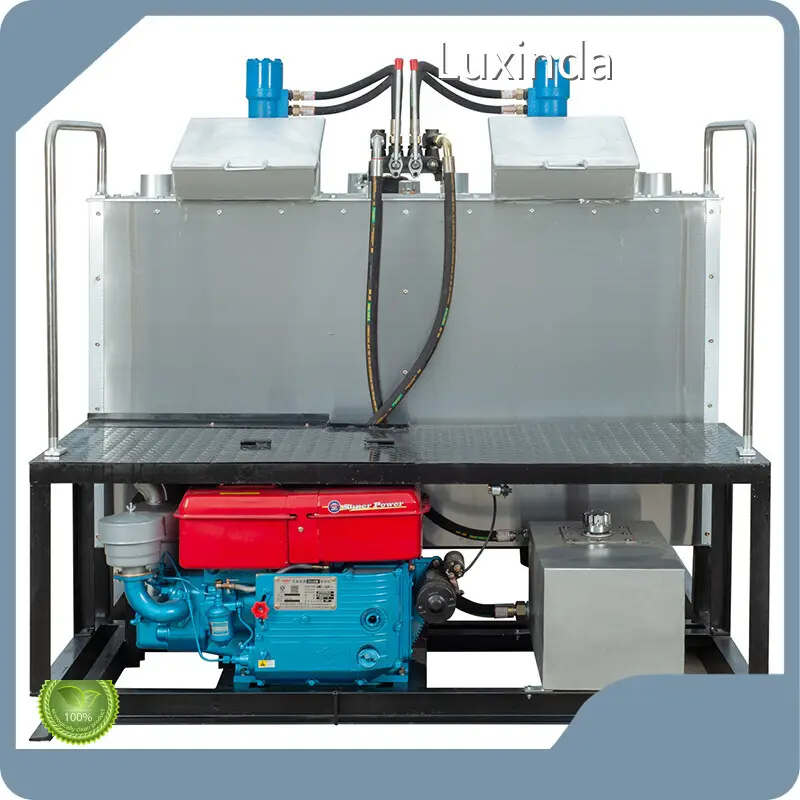

Thermoplastic Boiler - --2
Company Advantages
· thermoplastic boiler is designed according to the latest market trend.
· The product is widely recognized for good reliability and usability.
· The service of is well known in thermoplastic boiler industry.
Related Parameters
|
It is updated from the LPG thermoplastic preheater, which has the advantage of convenient, economical and high efficient. especially suitable for the area with strong wind. |
|
|
Engine |
15PS electric strat water-cooled diesel engine |
|
Stirring system |
Hydraulic stirring system with protective device, can stir clockwise or anti-clockwise. |
|
Paint tank capacity |
600KG×2 |
|
Paint tank |
Made of Boiler iron |
|
Heating mode |
LPG(gas tank suggest 50KG) or Diesel ,Dual purpose type energy-efficient burner |
|
Hydraulic oil tank |
70L |
|
Diesel tank |
60L |
|
Thermometer |
Each container is equipped with thermometer with heating resistance and shock resistance. |
|
Operation Control |
The manual dual control valves respectively control two stirrers in the two cylinders. |
|
Ventilating exhaust system |
Suction-type chimneys at the top of cylinder |
|
Discharge Outlet |
Lockable discharge trough and the close inter meshing type discharge system. |
|
Heating temperature |
0~300℃ |
|
Heat preservation |
Double layer heat insulating material is fixed between inner container and outer layer |
|
Structure |
Frame structure, Integrative welded structure with high stength, heating resistance and oxidation resistance. |
|
Size and Weight |
1850×1820×1760mm 1290kg |
Product Details
Application Scenario
Company Features
· Being a renowned manufacturer specialized in providing thermoplastic boiler for decades, we have gained a vast amount of experience.
· The internal quality management system has existed since the very first days of the factory's activity. This system targets controlling the entire range of production activities to ensure high product quality.
· We pursue an integrated sustainability strategy aligned with international standards. We are committed to a more responsible, balanced and sustainable future.
Product Comparison
Luxinda's thermoplastic boiler is produced in strict accordance with standards. We make ensure that the products have more advantages over similar products in the following aspects.
