Road Marking Removal Equipment - -

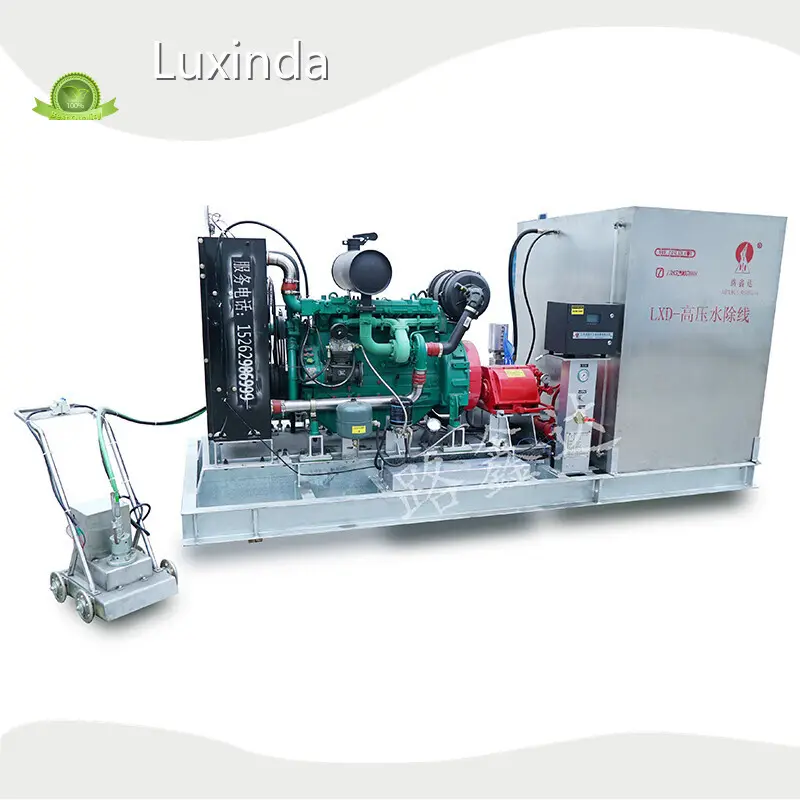

Product details of the road marking removal equipment
Product Overview
Lean production method is adopted to produce road marking removal equipment to maximise productivity and minimise costs. Before shipment, we will conduct various types of tests to check the quality of this product. The road marking removal equipment produced by Luxinda can be used in many fields. We have successfully applied for patents of technology for road marking removal equipment.
Product Introduction
The road marking removal equipment we produce are able to stand up to the details.
Related Parameters
|
Engine |
DEUTZ Diesel Engine, Power:120kw Rotated speed:1500r/min |
|
High pressure pump |
USA JETECH Pump,pressure:140Mpa; Flow:30L/min; bearing:Japan NSK; Plunger:hard alloy Φ18; High pressure seal:imported seal |
|
Compulsive lubricating system and oil cooling system |
|
|
Imported safety Bursting diaphragm |
|
|
Pressure regulating valve: imported from Japan |
|
|
High pressure gauge: Imported from Germany |
|
|
Complete computer monitoring system |
|
|
Stationary chassis assembly length: 3.8m |
|
|
Prepositive booster pump: Max 6KG |
|
|
Water supply pipeline system:stainless steel and Withhold hose |
|
|
Filter: Double layer, stainless steel vertical type filter |
|
|
Water supply protect system:include low-pressure protection system |
|
|
Water tank:not lower than 2.7CBM,made of stainless steel |
|
|
High pressure pump spare parts kit |
|
|
Oil tank: 250L |
|
Technical data
|
Length of pipeline: 10m |
Working speed:1.5m/min |
|
Cross revolution:800~900R/Min |
Weight:2.1Ton |
|
Size:2.7m*1.5m*1.6m(length*width*height) |
Water consumption:30L/Min(actual 20L/Min) |
|
Oil cost:15L/Hour |
Power of diesel engine:120kw |
|
Revolution of diesel engine:1500R/Min |
Water tank capacity:4.5Ton |
|
Time of add water: 3times per day |
Cross lifetime:about 3~4month |
|
Seal Ring lifetime:change every half an year.(the water should be clean) |
Oil tank: a tank of oil can support three days working. |
Product Details
Application Scenario
Company Introduction
Widely recognized as a professional producer of road marking removal equipment, Jiangsu Luxinda Traffic Facilities Co.,Ltd. is highly reliable. A set of mature production technology also functions as an important part which contributes to the good quality of road marking removal equipment. In this competitive society, needs to keep innovating to be more competitive. Inquire!
We always insist on the production of high-quality products. Welcome customers with needs to negotiate with us!
