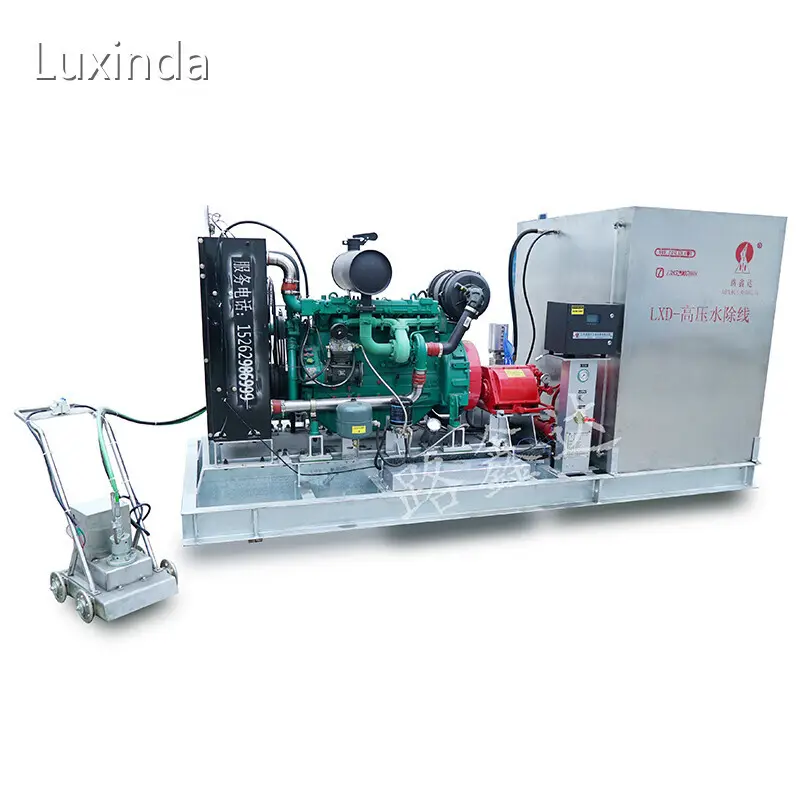

LXD90-3 High Pressure Water Jetting Road Marking Remover-1
Product details of the road marking removal equipment
Product Description
Related Parameters
|
Engine |
DEUTZ Diesel Engine, Power:120kw Rotated speed:1500r/min |
|
High pressure pump |
USA JETECH Pump,pressure:140Mpa; Flow:30L/min; bearing:Japan NSK; Plunger:hard alloy Φ18; High pressure seal:imported seal |
|
Compulsive lubricating system and oil cooling system |
|
|
Imported safety Bursting diaphragm |
|
|
Pressure regulating valve: imported from Japan |
|
|
High pressure gauge: Imported from Germany |
|
|
Complete computer monitoring system |
|
|
Stationary chassis assembly length: 3.8m |
|
|
Prepositive booster pump: Max 6KG |
|
|
Water supply pipeline system:stainless steel and Withhold hose |
|
|
Filter: Double layer, stainless steel vertical type filter |
|
|
Water supply protect system:include low-pressure protection system |
|
|
Water tank:not lower than 2.7CBM,made of stainless steel |
|
|
High pressure pump spare parts kit |
|
|
Oil tank: 250L |
|
Technical data
|
Length of pipeline: 10m |
Working speed:1.5m/min |
|
Cross revolution:800~900R/Min |
Weight:2.1Ton |
|
Size:2.7m*1.5m*1.6m(length*width*height) |
Water consumption:30L/Min(actual 20L/Min) |
|
Oil cost:15L/Hour |
Power of diesel engine:120kw |
|
Revolution of diesel engine:1500R/Min |
Water tank capacity:4.5Ton |
|
Time of add water: 3times per day |
Cross lifetime:about 3~4month |
|
Seal Ring lifetime:change every half an year.(the water should be clean) |
Oil tank: a tank of oil can support three days working. |
