Line Marking Removal Machine by-1
Product details of the line marking removal machine
Product Information
The shape of line marking removal machine is more compact and is convenient to use. The product is accredited in all aspects, such as long service life, stable performance, and so on. It is the implement of quality assurance that our line marking removal machine is so popular in the market.
Related Parameters
|
Technical parameter |
|

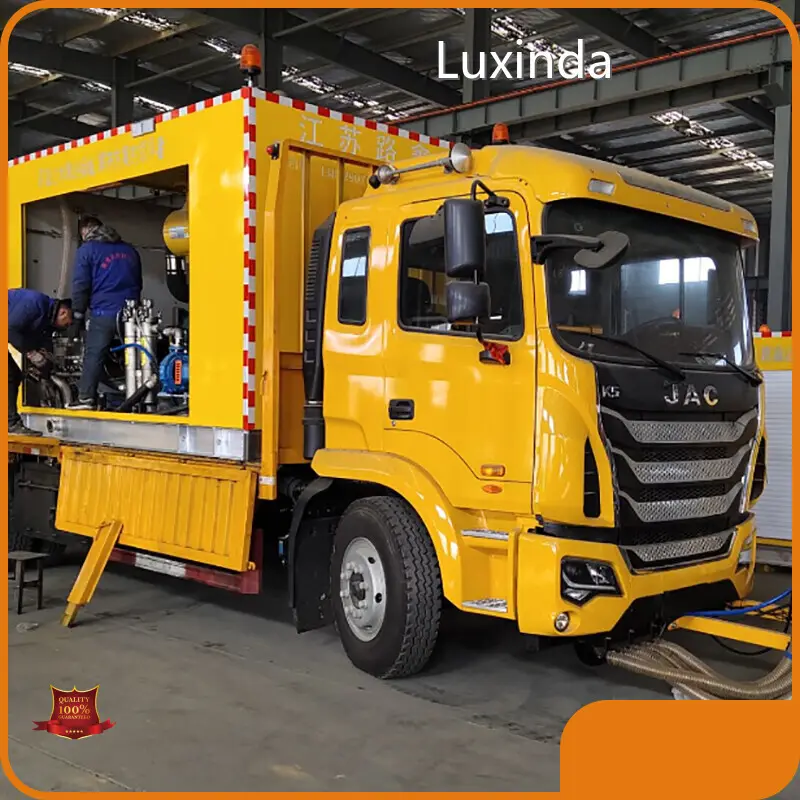

The machine mounted on Truck JAC K5, Vehicle performance and equipment matching, can apply for ordinary vehicle license and according to the provisions of inspection and examination. The high pressure water pump and other special components are integrated and installed in the protective cover, which can be easily separated from the vehicle. |
|
Remove line width: maximum 30cm (adjustable from 15cm-30cm) |
|
Operating speed: 10-20m/min (according to line thickness) |
|
Engine: Weifang Weichai Power (Dowitz) Power: 255 kw Speed: 1800 r/min |
|
Pump speed: 500 cycles per minute |
|
Pressure: 2500bar |
|
Flow: 46L／min |
|
Plunger: cemented carbide 19.05 |
|
High pressure seal: imported high quality molding seal |
|
Forced lubrication system and oil cooling system, imported high quality and safe blasting diaphragm |
|
Full computer monitoring instrument box: oil temperature alarm, water temperature alarm, diesel engine speed, water pressure size, voltage display working time, machine fault display, water pressure precise pressure adjustment |
|
Booster pump: the maximum pressure booster pump is 6kg |
|
Filter: double layer stainless steel vertical filter secondary filter |
|
Water supply protection system: low pressure protection system including water supply |
|
Suction system: SSA vacuum pump, pressure -0.4bar, solid - liquid separation |
|
Water tank: 700kg of sewage (without shutdown), 6T of clean water |
|
Oil tank: 250L |
|
The equipment is integrated with housing protection, and can be easily separated from the vehicle |
|
Vehicle running control: uniform walking controller (without human control) with a minimum speed of 5m/min can cruise at a constant speed with the electronic shift of vehicle gear |
|
Remote monitoring system of vehicle cab (the driver can monitor the clearance of the marking line of the vehicle in the cab through video images in real time) |
|
The actuator up and down is controllled by Remote hydraulic , adjustable from 0° to 270°, removing line in left, middle and right direction |
|
Size: 5.53m*2.2m*2.25m, Loading size: (JAC K5) :10.1m*2.55m*3.45m |
|
Net weight: 7T(not include truck) |
Standard data parameters list
General key component
● Front bracket module(1)
● Luxinda customized spray disc(3)
● Luxinda special nozzle(2)
● Truck required, For example: Jac truck, K5L cab, Engine: Yuchai , YC4S160-50, Gearbox: fast-gear, 6DS60T, front axle: 3.5T, rear axle: 8T, crossbeam: 230*75*6, tire: 10R22.5, vacuum tire. Carriage dimension: 6800*2450*600, gross mass: 16T, load capacity: 9.8T
● Installation and truck upgrade
● drive unit for moving(reduction gear)
● Installation and separation of fresh and waste water
● Computerized speed/pressure synchronization
● Starter kits wear out parts/tools
Alternatives
● Omnirange
● Monitoring system
● Handover, maintenance and operation training
● 250h spare parts package (theoretically)
Road application
● Improvements in asphalt and concrete
● Clear road markings (hot melt, cold paint, two-component)
● Remove the oil stain on the road surface
● Remove Zebra crossing
Application at the airport
● Remove rubber and paint
● Oil cleaning
● AGL (Aerodrome Ground Lighting) cleaning
● The platform cleaning
Main configuration - removing rubber
|
Category |
Particulars |
Qty |
Brand |
Description |
|||
|
Power system |
Diesel engine |
1 |
Weichai dao yitz |
255kw construction machinery supporting electric jet engine with ecu control system |
|||
|
Air compressor |
1 |
Weichai dao yitz |
Weichai daoyitz, custom-made air compressor, small size, high efficiency. |
||||
|
Fuel tank |
1 |
Lxd |
The thickened customized oil tank has a capacity of about 250l |
||||
|
High-pressure components |
Three-throw ram pump |
1 |
|
Pressure: 2500bar Flow: 46l/min Imported materials, technical processing |
|||
|
Pressure meter |
1 |
German wika |
|||||
|
Pneumatic pressure regulating valve |
1 |
Japan |
|||||
|
Explosion-proof seat |
1 |
|
|||||
|
Transmission parts |
Coupling shaft coupling |
1 |
German centre |
Germany imported elastic coupling, product quality is stable and reliable |
|||
|
|
Water filter |
2 |
Lvwei |
Domestic supporting, domestic filter industry well-known brand |
|||
|
|
Booster pump |
1 |
South pump industry |
Export brand, stable and reliable performance |
|||
|
Control system |
Control cabinet |
1 |
Lxd |
Customized imported controller, strong ability to expand, stable performance, powerful, simple to use, ip65 protection |
|||
|
Chassis system |
Chassis |
1 |
Lxd |
The bottom angle of diesel engine and pump installation is processed by large milling machine to ensure the flatness of installation |
|||
|
Suction system |
Vacuum pump |
1 |
Sino-japanese joint venture ssr |
We can form a suction pressure of -0.4 to ensure perfect results |
|||
|
Rubber removal head |
|
1 |
Imported |
Max pressure: 3000bar Max flow: 46l/min Working width: 300mm Weight: About 50kg Rpm: About 1500-2000rpm，adjustable according to the angle of the jet rod; there are 12 or 24 pcs nozzles. Main material: Special stainless steelSealing form: Engineering plastic sealWith protective cover and hand push rodConnection thread: 1-1/8unf internal thread; |
|||
|
Separation system |
304 stainless steel water tank |
2 |
Lxd |
Clean water tank about 6 tons, sewage tank can be customized |
|||
|
Vacuum separation technique |
1 |
Winter grun |
Water and slag are recycled simultaneously |
||||
|
Water and slag air filter |
1 |
Winter grun |
|
||||
|
Vehicle walking system |
Turtle gear device |
1 |
Lxd |
Model: New type jac k5l |
|||
|
Transmission gear |
Engine speed |
Vehicle gear |
Speed |
||||
|
High gear |
Idling 770r/min |
First gear |
75m/min |
||||
|
Low gear |
Idling 770r/min |
First gear |
3±0.1m/min |
||||
|
Low gear |
1000r/min |
First gear |
40.1m/min |
||||
|
Low gear |
1500r/min |
First gear |
5.8m±0.1m/min |
||||
|
The current ratio 23.75 |
|||||||
