Line Marking Removal Machine - --1

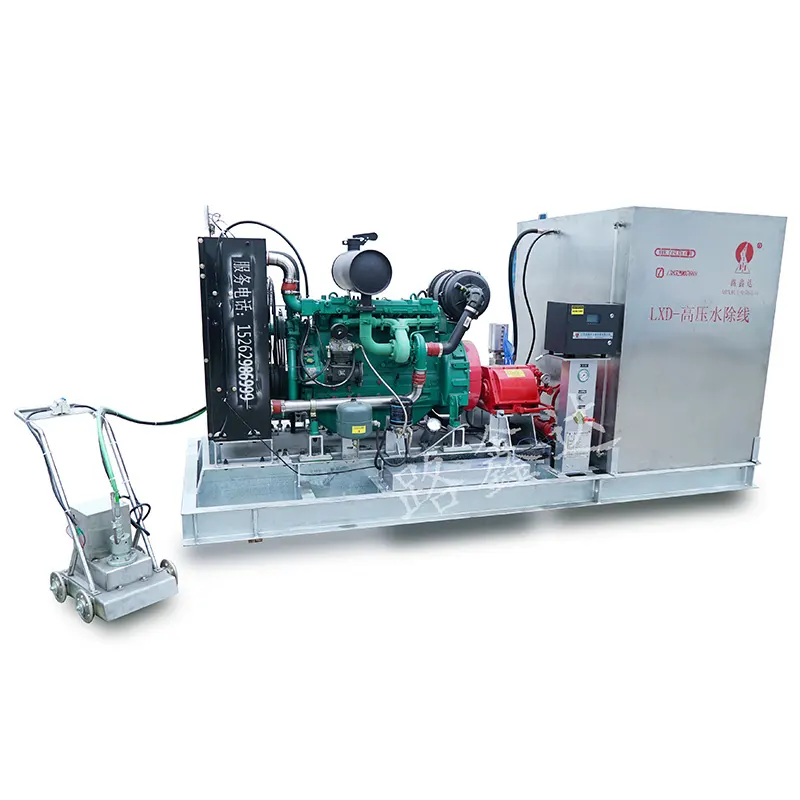

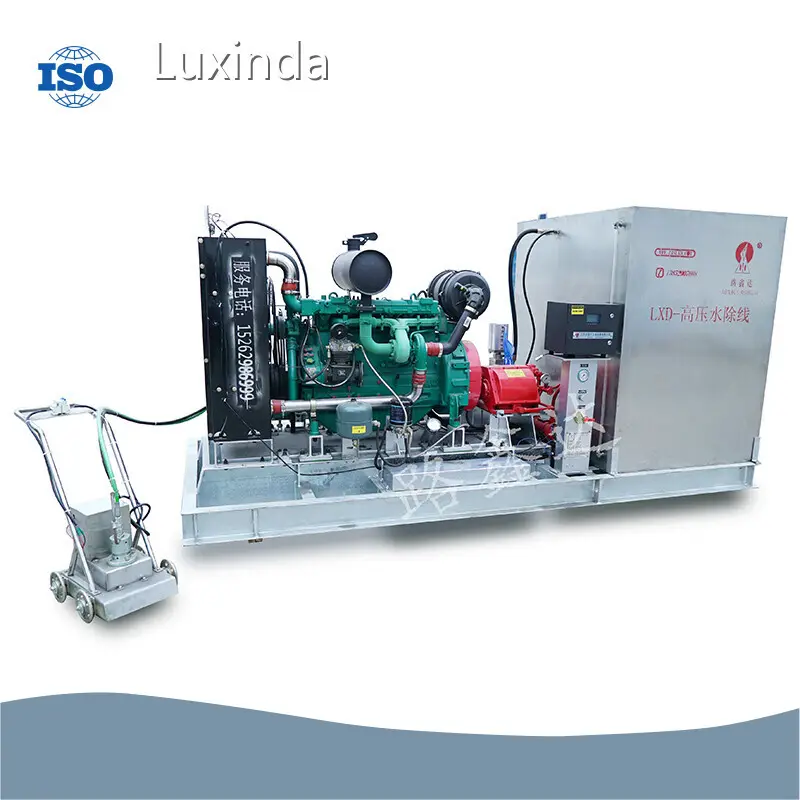

Product details of the line marking removal machine
Product Description
line marking removal machine has similar quality as famous brand but has cheaper price. offer line marking removal machine with chic styles which meets different needs. is a supplier specialized in offering line marking removal machine with strong technical force.
Related Parameters
|
Engine |
DEUTZ Diesel Engine, Power:120kw Rotated speed:1500r/min |
|
High pressure pump |

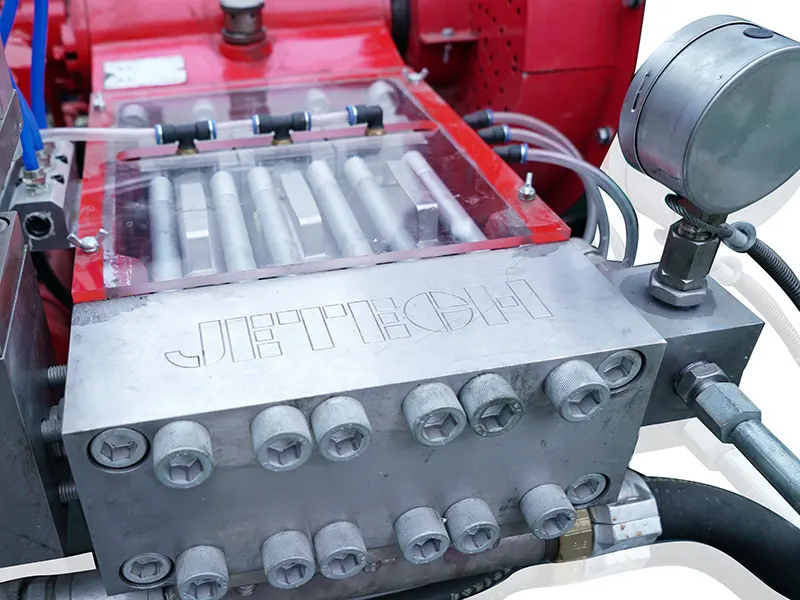

USA JETECH Pump,pressure:140Mpa; Flow:30L/min; bearing:Japan NSK; Plunger:hard alloy Φ18; High pressure seal:imported seal |
|
Compulsive lubricating system and oil cooling system |
|
|
Imported safety Bursting diaphragm |
|
|
Pressure regulating valve: imported from Japan |
|
|
High pressure gauge: Imported from Germany |
|
|
Complete computer monitoring system |
|
|
Stationary chassis assembly length: 3.8m |
|
|
Prepositive booster pump: Max 6KG |
|
|
Water supply pipeline system:stainless steel and Withhold hose |
|
|

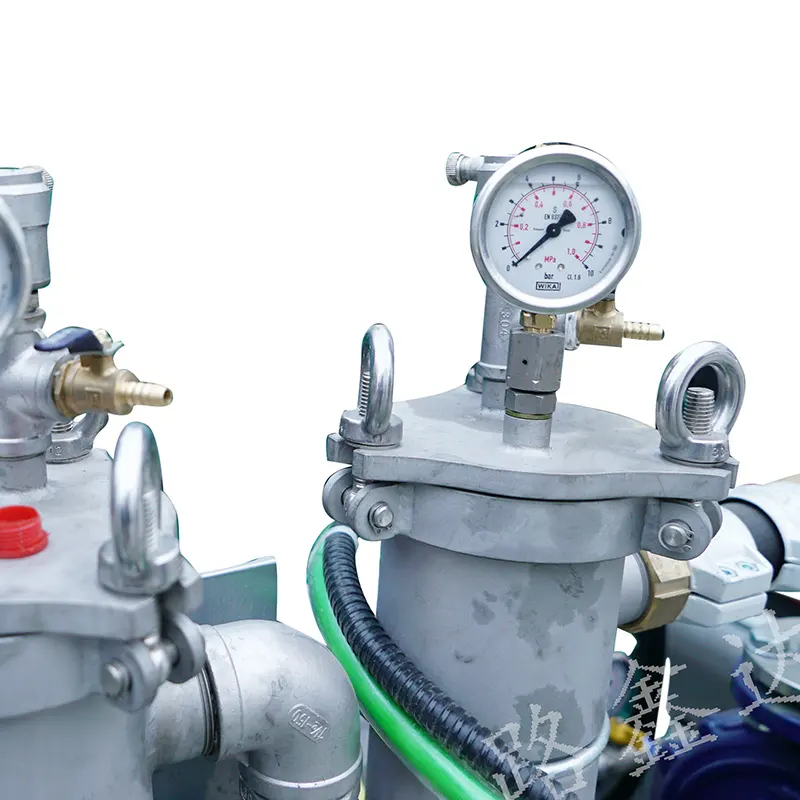

Filter: Double layer, stainless steel vertical type filter |
|
|
Water supply protect system:include low-pressure protection system |
|
|
Water tank:not lower than 2.7CBM,made of stainless steel |
|
|
High pressure pump spare parts kit |
|
|
Oil tank: 250L |
|
Technical data
|
Length of pipeline: 10m |
Working speed:1.5m/min |
|
Cross revolution:800~900R/Min |
Weight:2.1Ton |
|
Size:2.7m*1.5m*1.6m(length*width*height) |
Water consumption:30L/Min(actual 20L/Min) |
|
Oil cost:15L/Hour |
Power of diesel engine:120kw |
|
Revolution of diesel engine:1500R/Min |
Water tank capacity:4.5Ton |
|
Time of add water: 3times per day |
Cross lifetime:about 3~4month |
|
Seal Ring lifetime:change every half an year.(the water should be clean) |
Oil tank: a tank of oil can support three days working. |
Product Details
Application Scenario
Company Feature
• Our company has a unique quality system for production management. At the same time, our large after-sales service team can improve the quality of the products by investigating the opinions and feedback of customers.
• Apart from being favored deeply by domestic consumers, our company's products have gained the support and praise from overseas customers in Southeast Asia, Australia, America and other countries.
• Luxinda thinks highly of talents introduction and cultivation. We have an experienced and professional talents team who plays a significant role in our company's rapid development.
• Luxinda's location enjoys traffic convenience and has complete infrastructures around. All these provide good conditions for our company's rapid development.
Luxinda has primary source and the products are produced and sold directly from the factory. All textile products are sold at EXW price. Please consult us for quotations.
