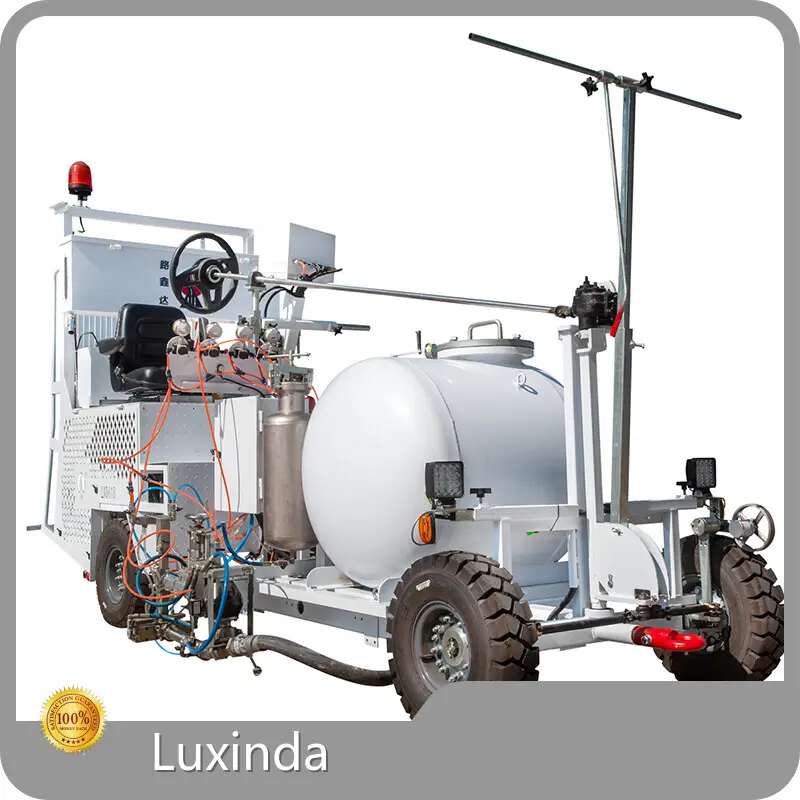

Highway Striping Equipment by-1
Related Parameters
|
Engine |
Kubota 1505 type diesel engine |
|
Fuel |
Diesel oil |
|
Electrical system |
LXD electronic control system |
|
Steering |
Powerful standard mechanical steering system according to the requirements mentioned |
|
Drive / brake system |
Hydrostatic transmission, also used as service brake, parking brake hydraulically controlled multi-disc brake |
|
Wheels |
6.00-9NHS * 4 |
|
Compressor |
0.21m³ / min |
|
Operating air pressure |
7 bar, silenced safety valve |
|
Paint pressure tank |
385 ltr., with agitator, other container capacities on request |
|
Mixing-system |
98 : 2 |
|
Marker unit |
screed box for solid line |
|
Glass bead equipment |
on request, metering bead dispenser up to 300 mm |
|
weight |
About 2000kg |
|
Dimensions |
About length 4m(not include pointer)* width 1.4(not include shoe) m* height 2.2 m(adjustable) |
Product Details
Application Scenario
Company Advantages
· The designer of highway striping equipment have quality in mind during the design phase.
· Owning to its superior quality and reasonable price,our highway striping equipment has met with warm reception and quick sale in the market.
· Jiangsu Luxinda Traffic Facilities Co.,Ltd. has formed a well-trained team with proficient skills.
Company Features
· Depending on experience and manufacturing ability, Jiangsu Luxinda Traffic Facilities Co.,Ltd. has gained an absolute leading position in the R&D and production of highway striping equipment.
· The technology we applied is at the forefront of the highway striping equipment industry and provides a solid foundation for the company's future development.
· The development of all respects of company facilitates to be more attractive. Get quote!
Application of the Product
Luxinda's highway striping equipment is available in a wide range of applications.
Luxinda is dedicated to solving your problems and providing you with one-stop and comprehensive solutions.
