Over 20 years manufacturing experience of Road marking machine and road marking removal machine.
sales@lxdmarking.com+86 15805293662

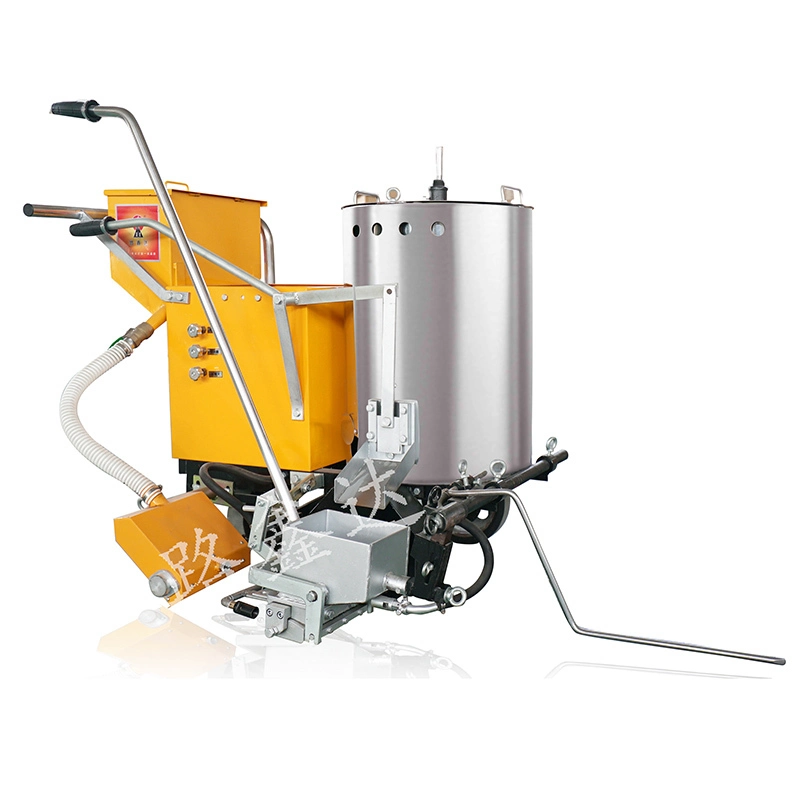

LXD860 hand push thermoplastic road marking machine
Marking equipment: high-precision integrated marking shoe,screeding type,standard configuration: 150mm
Grounded blade: inlaid hard alloy,and also have pure alloyed grounded blade for your choice
Paint container capacity: 100kg(4 bags thermoplastic paint)
Paint container: double layer stainless steel,equipped with inserted dismountable manumotive stirring device,the container is removable & interchangeable for quick color changes
Related Parameters
|
Specification |
|
|
Marking equipment |
high-precision integrated marking shoe, screeding type, standard configuration: 150mm |
|
Grounded blade |
inlaid hard alloy,and also have pure alloyed grounded blade for your choice |
|
Paint container capacity |
100kg(4 bags thermoplastic paint) |
|
Paint container |
double layer stainless steel,equipped with inserted dismountable manumotive stirring device, the container is removable & interchangeable for quick color changes |
|
Glass beads container capacity |
10kg |
|
Glass beads container |
Automatic spreader |
|
Glass beads dispenser |
100/150/200/250/300/400/450mm(optional) |
|
Line thickness |
1.0-3.0mm(adjustable) |
|
50/100/150/200/250/300/400/450mm(optional) |
|
|
Heating temperature |
180~210℃ |
|
Heating Mode |
Liquefied petroleum gas heating |
|
Gas tank |
15kg |
|
wheel |
High temperature resistance soft rubber,rear wheel equipped with localiser to make the machine walk along the straight line |
|
Speed |
1.5km/h |
|
Driving method |
Hand-push |
|
Machine Weight |
126kg |
|
Dimension |
1150×850×950mm |
