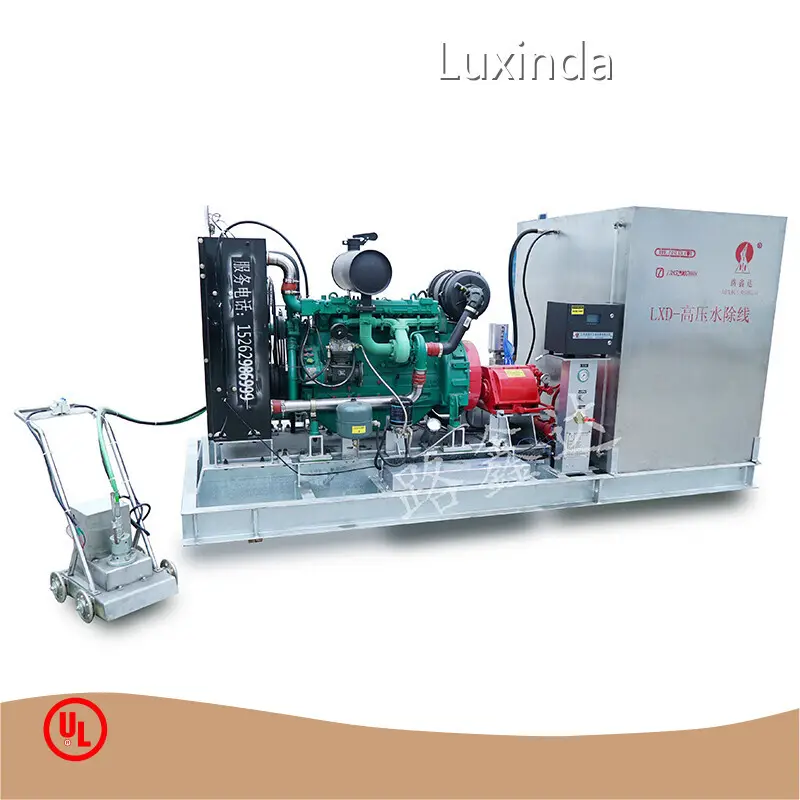

Road Line Removal Equipment - --1
Product details of the road line removal equipment
Quick Detail
road line removal equipment ensures the high precision of products. Customers are greatly impressed by the product durability and performance. The road line removal equipment developed by Luxinda is widely used in various fields. is able to provide the most professional road line removal equipment solutions.
Product Introduction
With a focus on every detail of road line removal equipment, we strive to create high-quality products.
Related Parameters
|
Engine |
DEUTZ Diesel Engine, Power:120kw Rotated speed:1500r/min |
|
High pressure pump |
USA JETECH Pump,pressure:140Mpa; Flow:30L/min; bearing:Japan NSK; Plunger:hard alloy Φ18; High pressure seal:imported seal |
|
Compulsive lubricating system and oil cooling system |
|
|
Imported safety Bursting diaphragm |
|
|
Pressure regulating valve: imported from Japan |
|
|
High pressure gauge: Imported from Germany |
|
|
Complete computer monitoring system |
|
|
Stationary chassis assembly length: 3.8m |
|
|
Prepositive booster pump: Max 6KG |
|
|
Water supply pipeline system:stainless steel and Withhold hose |
|
|
Filter: Double layer, stainless steel vertical type filter |
|
|
Water supply protect system:include low-pressure protection system |
|
|
Water tank:not lower than 2.7CBM,made of stainless steel |
|
|
High pressure pump spare parts kit |
|
|
Oil tank: 250L |
|
Technical data
|
Length of pipeline: 10m |
Working speed:1.5m/min |
|
Cross revolution:800~900R/Min |
Weight:2.1Ton |
|
Size:2.7m*1.5m*1.6m(length*width*height) |
Water consumption:30L/Min(actual 20L/Min) |
|
Oil cost:15L/Hour |
Power of diesel engine:120kw |
|
Revolution of diesel engine:1500R/Min |
Water tank capacity:4.5Ton |
|
Time of add water: 3times per day |
Cross lifetime:about 3~4month |
|
Seal Ring lifetime:change every half an year.(the water should be clean) |
Oil tank: a tank of oil can support three days working. |
Product Details
Application Scenario
Company Information
Lying in zhen jiang, Jiangsu Luxinda Traffic Facilities Co.,Ltd. is a enterprise integrating production, processing, sales and service. The key products include road marking machine,Road marking removal,thermoplastic preheater,thermoplastic road marking machine,cold paint road marking machine,Two component road marking machine,thermoplastic convex road marking machine. Since its establishment, our company has been adhering to the corporate tenet of 'integrity and responsibility', and taking 'proving high-quality products and serving the society' as the development direction. We are dedicated to becoming a respected company. Our company has extensively taken excellent talents in, and we established a highly educated management team of high quality and efficiency. Based on the modern management concept, our management staff are committed to leading our company to develop faster and better. With Internet technology, we provide a one-stop solution for practical and effective implementation of related problems encountered in the process of purchasing products.
We have ample inventory and discounts for large purchases. Welcome to contact us!
